Figure 4

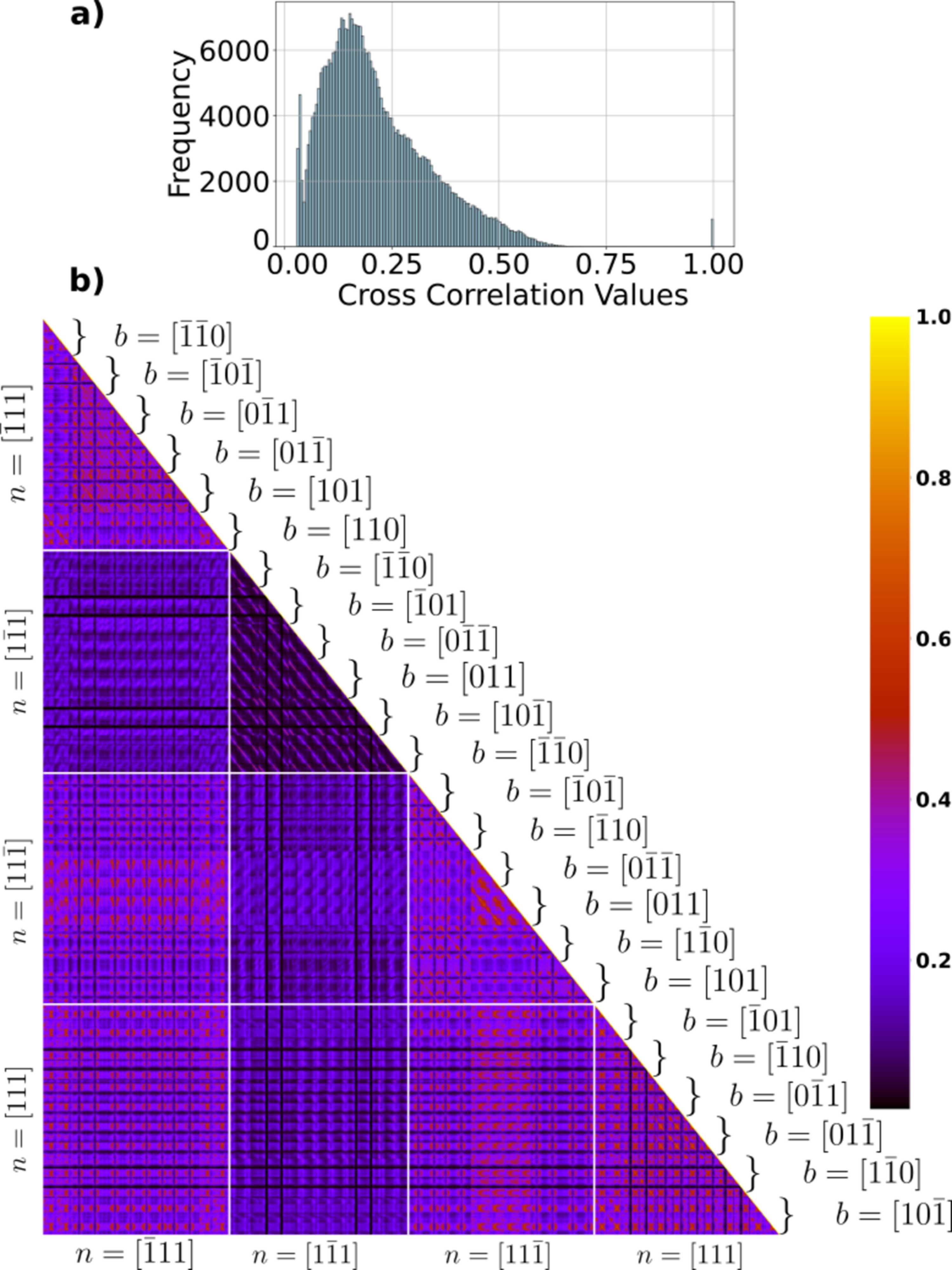

Covariance matrix of the cross-correlation values C for 840 simulated DFXM weak-beam images with [[{\overline 1} 1 {\overline 1}]] as scattering vector. Larger regions highlighted with white lines represent the four slip planes n. (Inset) Histogram of the cross-correlation values in the covariance matrix.
