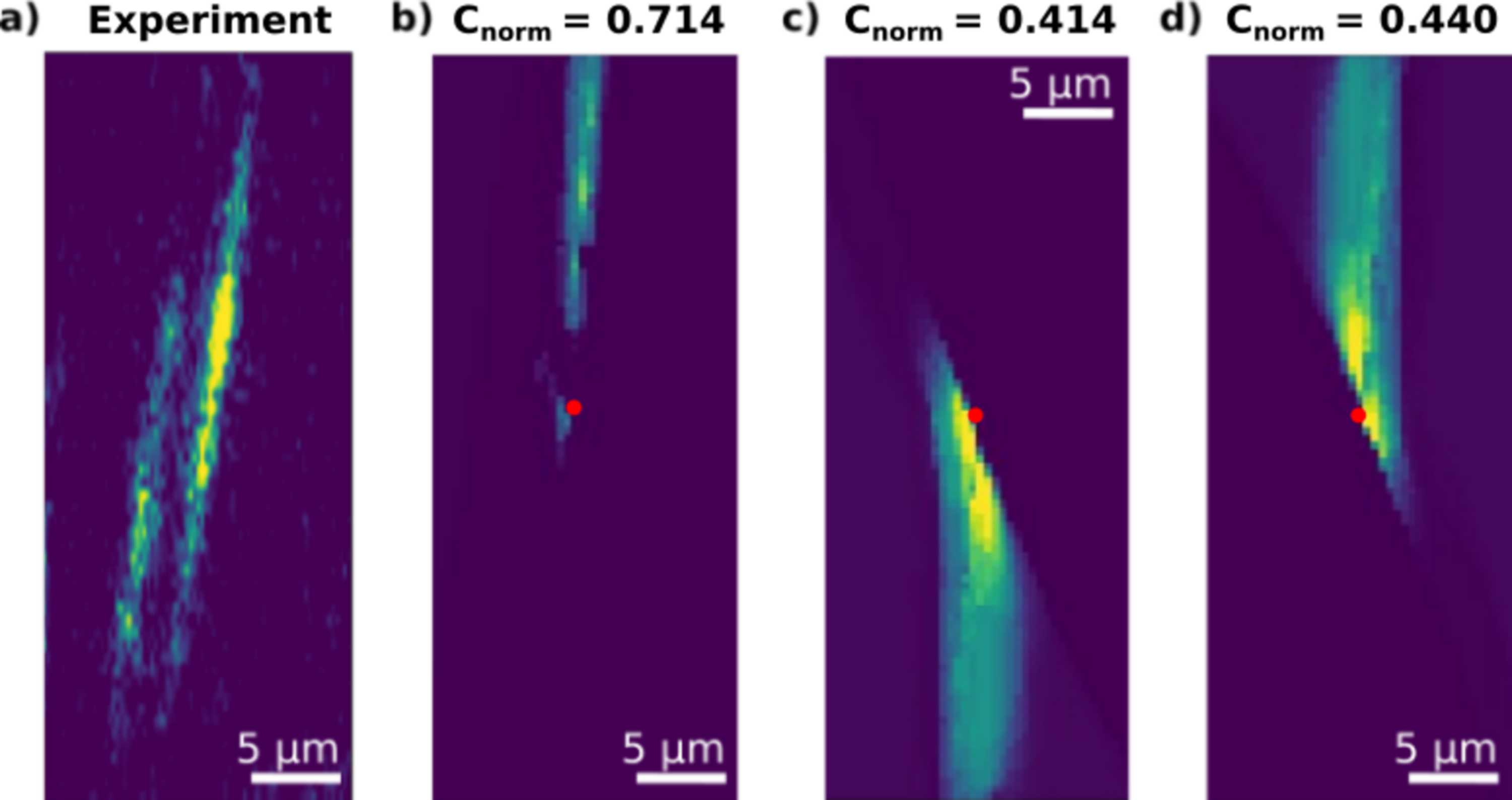

Figure 6
DFXM weak-beam images acquired at ϕ = 8 × 10−4°. (a) Experimental image. (b)–(d) Forward-modelled DFXM images with identical parameters to panel (a), representing a single dislocation at the centre (red dots) with Burgers vector (b) [110], (c) [[{\overline 1} 0 1]] and (d) [011]. The normalized cross-correlation value, Cnorm, is indicated above each simulated image.
