Figure 7

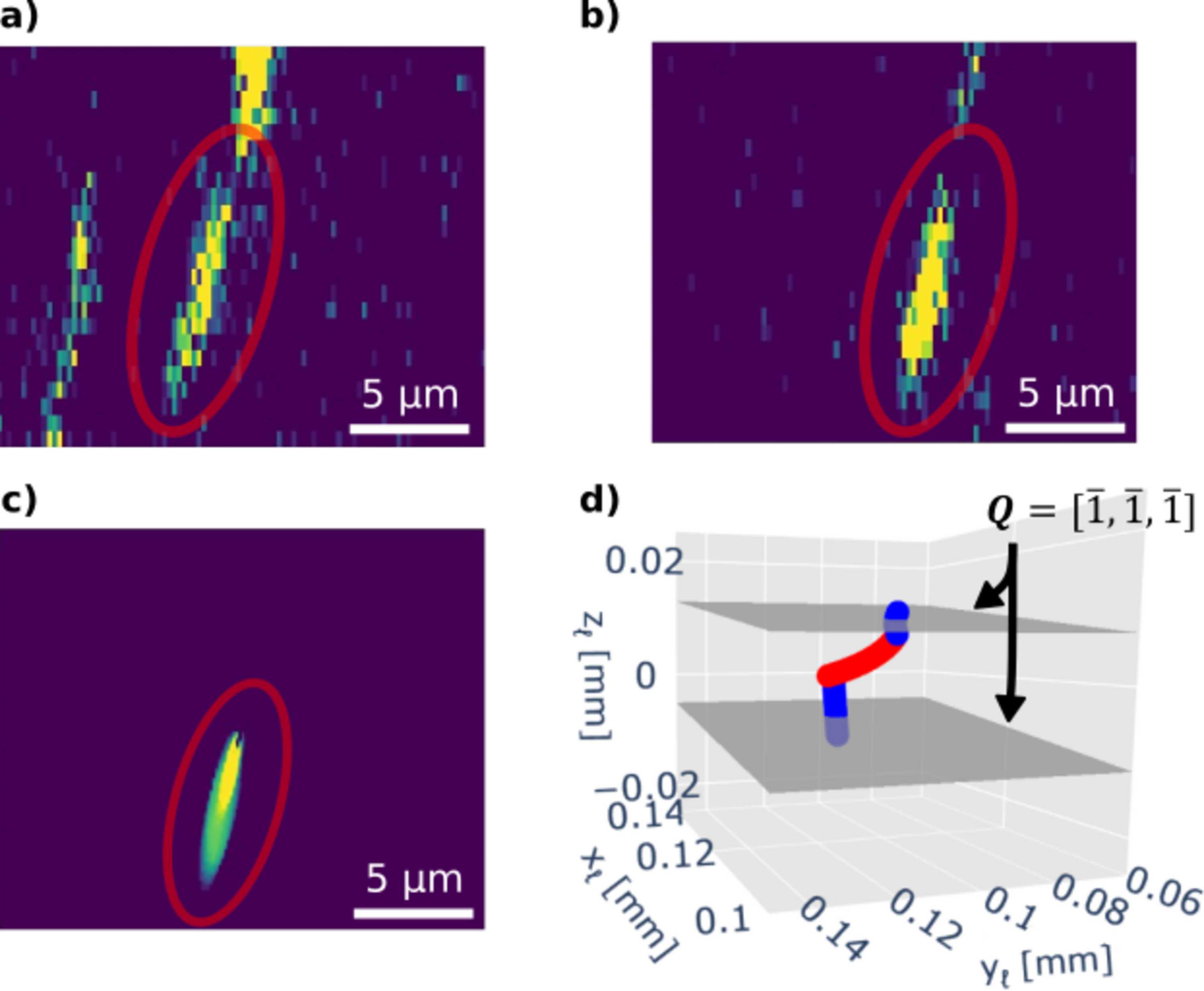

Double cross-slipping dislocation. (a) Weak-beam image of the lower blue segment in panel (d). (b) Weak-beam image of the upper blue segment in panel (d). (c) Corresponding forward-modelled image with the same parameters as the two segments of the dislocation. (d) Three-dimensional reconstruction of the double cross-slipping dislocation in laboratory coordinates. Diffraction planes are highlighted for images (a) and (b) with Q = [[{\overline 1} {\overline 1} {\overline 1}]].
