Figure 8

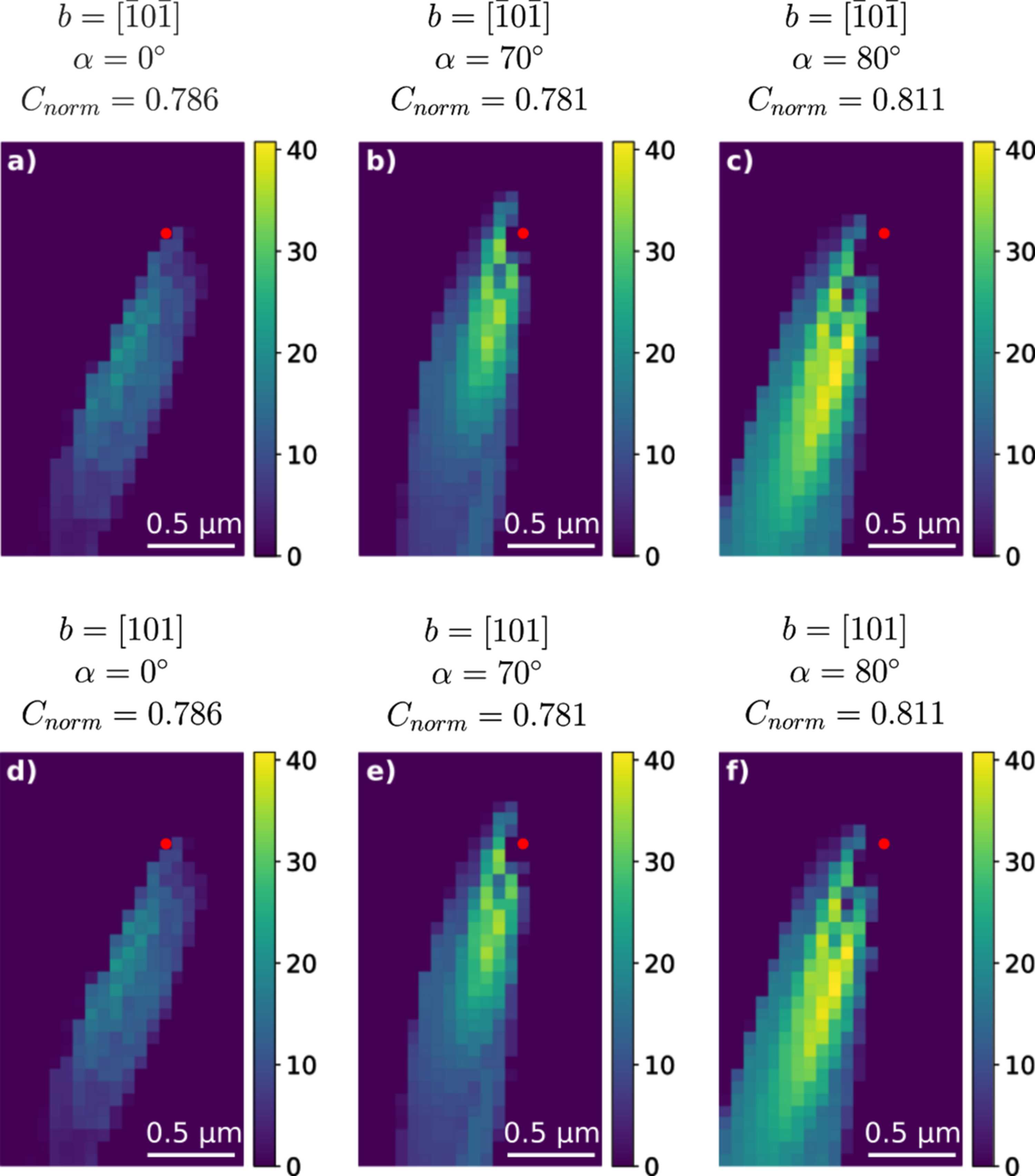

(a)–(f) Cropped weak-beam images (ϕ = 8 × 10−4°) of the six dis­lo­ca­tions with the highest Cnorm values out of the 840 simulated ones. All dislocations lie on the ([1 {\overline 1} {\overline 1}]) slip plane, and their Burgers vector b and line direction are displayed above each image. Here α represents the angle between the dislocation line direction and the Burgers vector b. The centres of the dislocations are marked with red dots.
