Figure 10

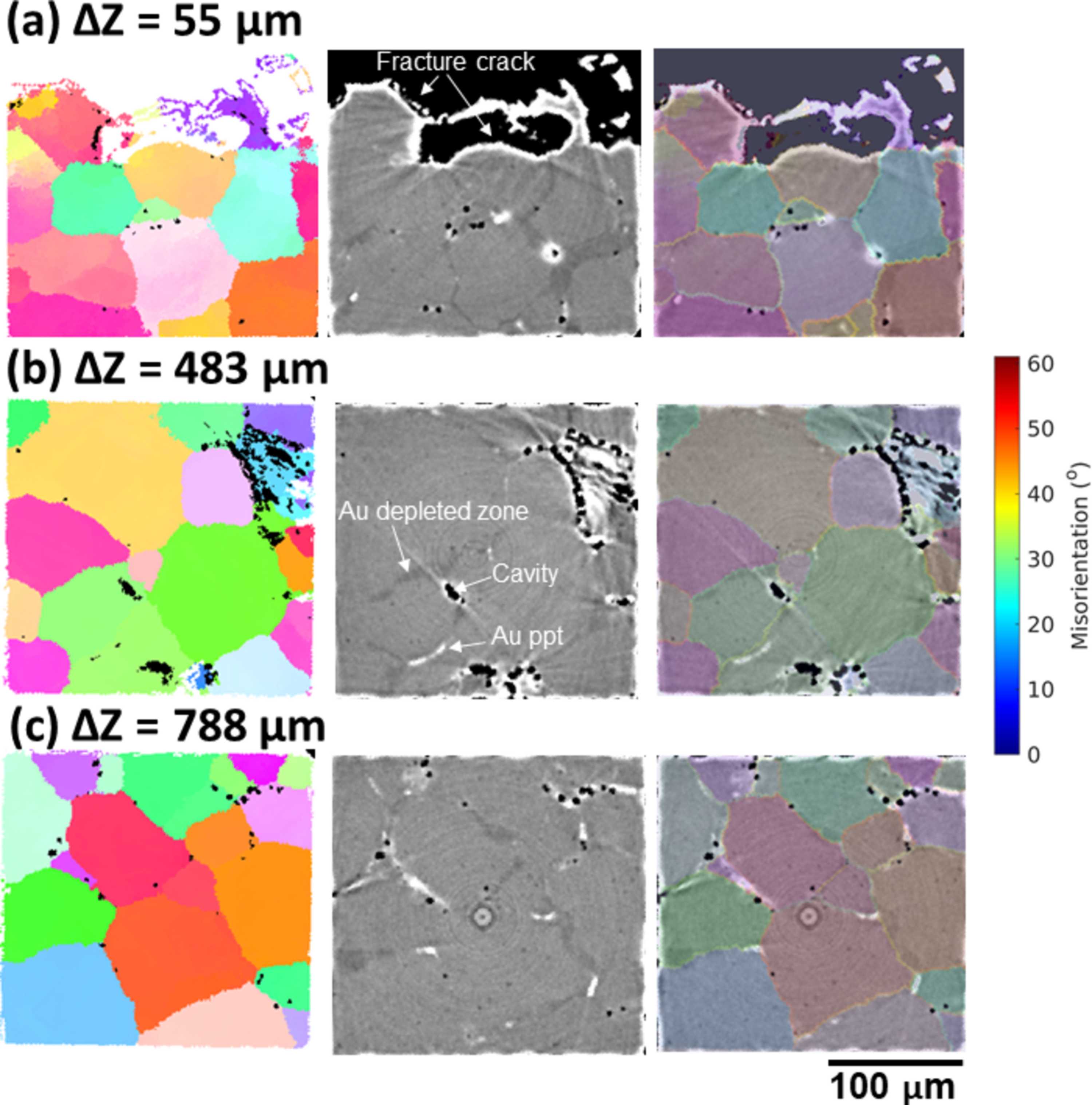

(a, b, c) 2D cross sections perpendicular to the loading direction and sliced at different distances from the top fracture surface (ΔZ = 55, 483 and 788 µm, respectively), showing the orientation map (left), tomographic slice (middle) and overlay between the two (right), with grain boundaries colored according to their misorientations. As marked in the tomographic slice, the black, white and dark gray features in the tomographic slices correspond to cavities, Au precipitates and Au-depleted zones, respectively.
