Figure 11

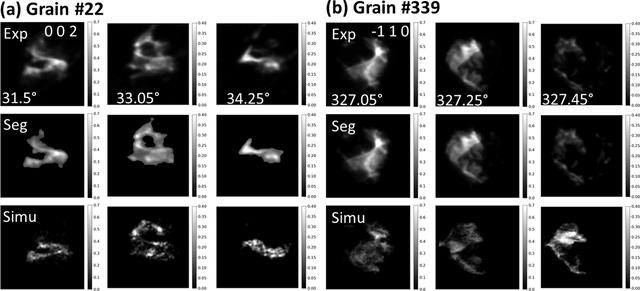

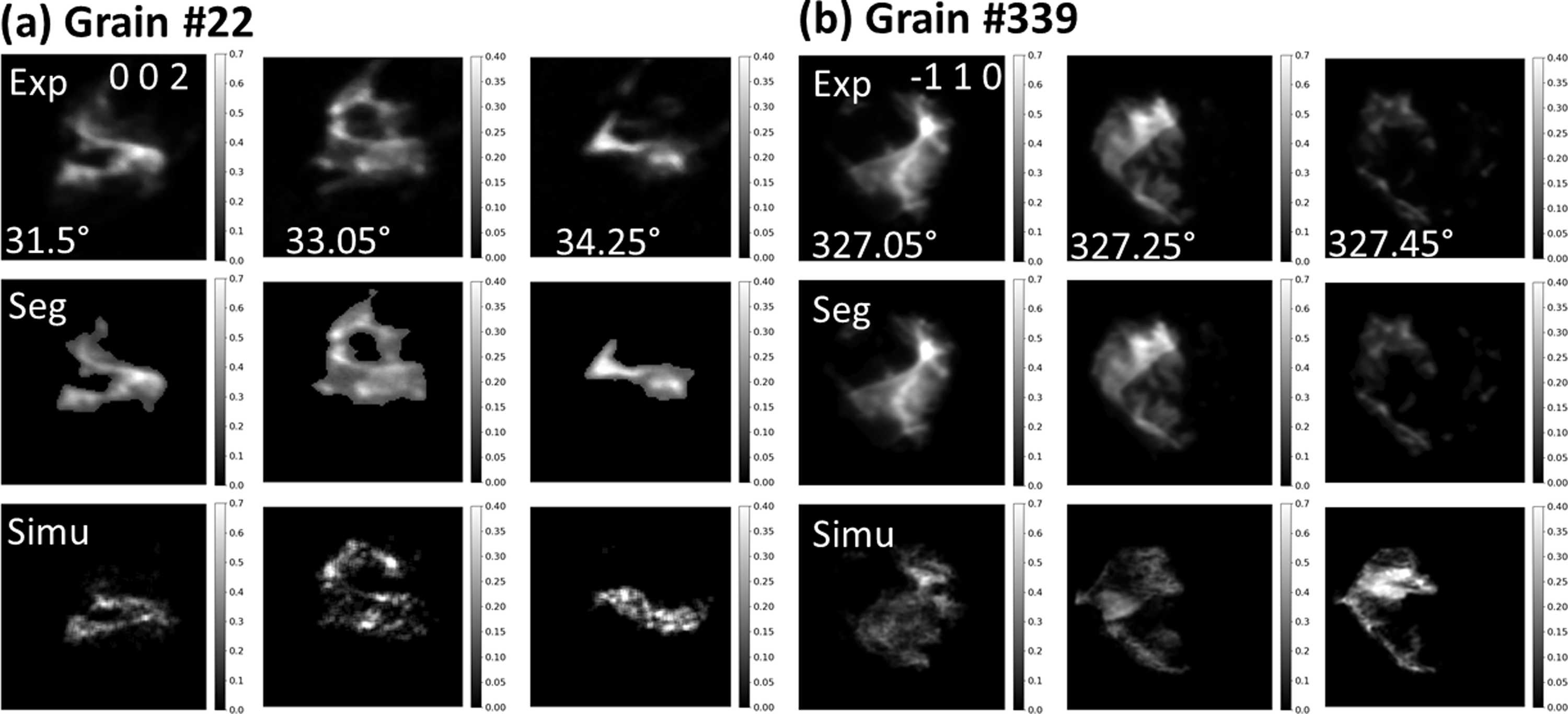

Comparison of simulated spots from reconstructed grains with the experimental spots for (a) grain #22 with hkl reflection 002 and (b) grain #339 with hkl reflection 110 in the Fe–Au alloy sample colored by intensities relative to the maximum spot intensity. The first row shows the experimental spots at different rotation angles; the middle row shows the segmented spots used for grain reconstruction; and the bottom row shows the simulated spots from the reconstructed grains.
