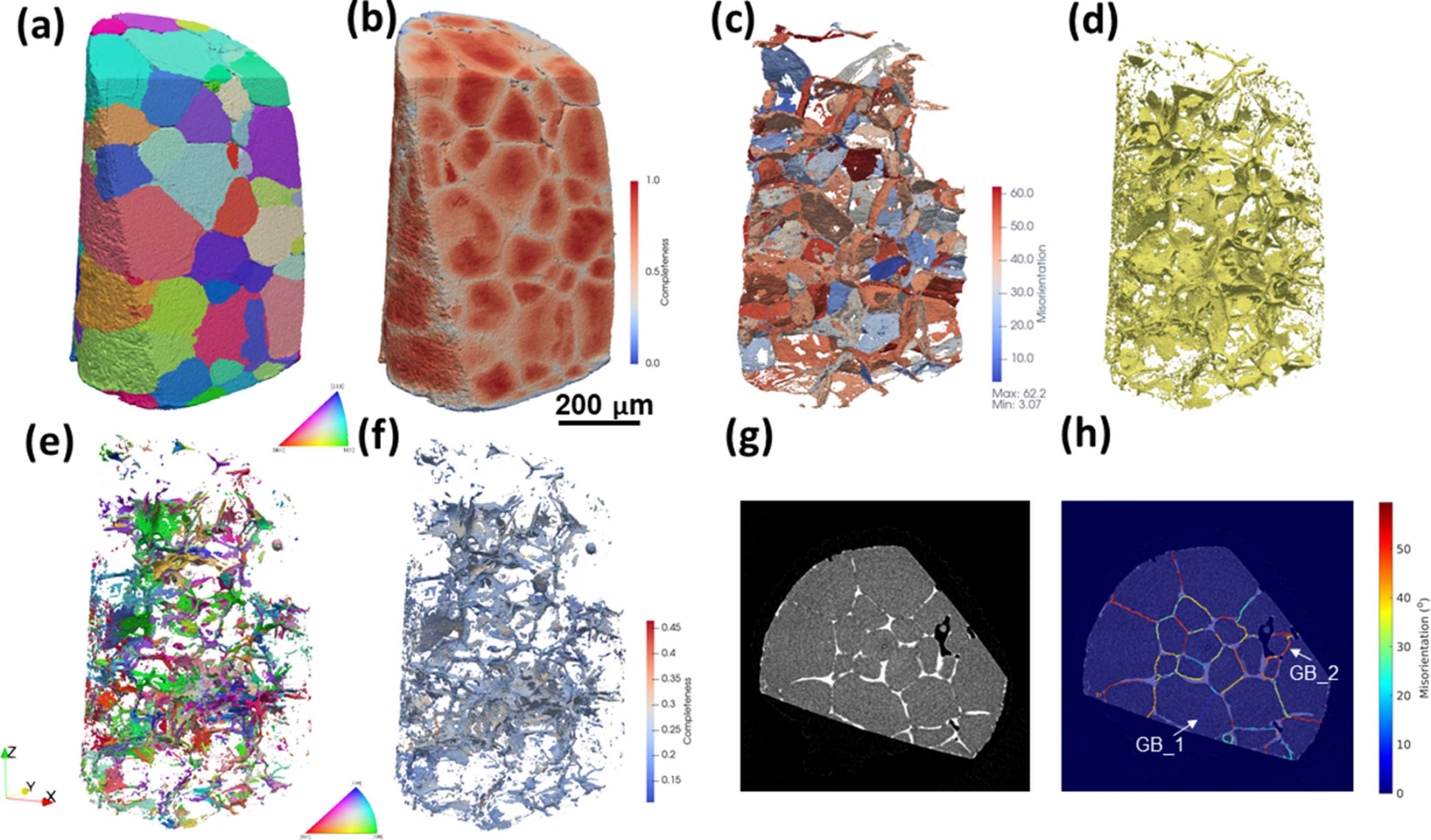

Figure 4
Multi-phase grain reconstruction of the Al–Cu alloy sample. (a, b) Grain map of Al matrix together with its completeness map; (c) grain boundaries extracted from the Al grain map colored by boundary misorientation angles; (d) the segmented Al2Cu phase; (e, f) grain map of the reconstructed Al2Cu phase and its completeness map; (g) 2D tomographic slice (Z = 236) showing Al matrix (gray), eutectic phase (white) and pores (black); and (h) an overlay with the Al grain boundary in which two grain boundaries without the eutectic phase, GB_1 and GB_2, are marked.
