Figure 6

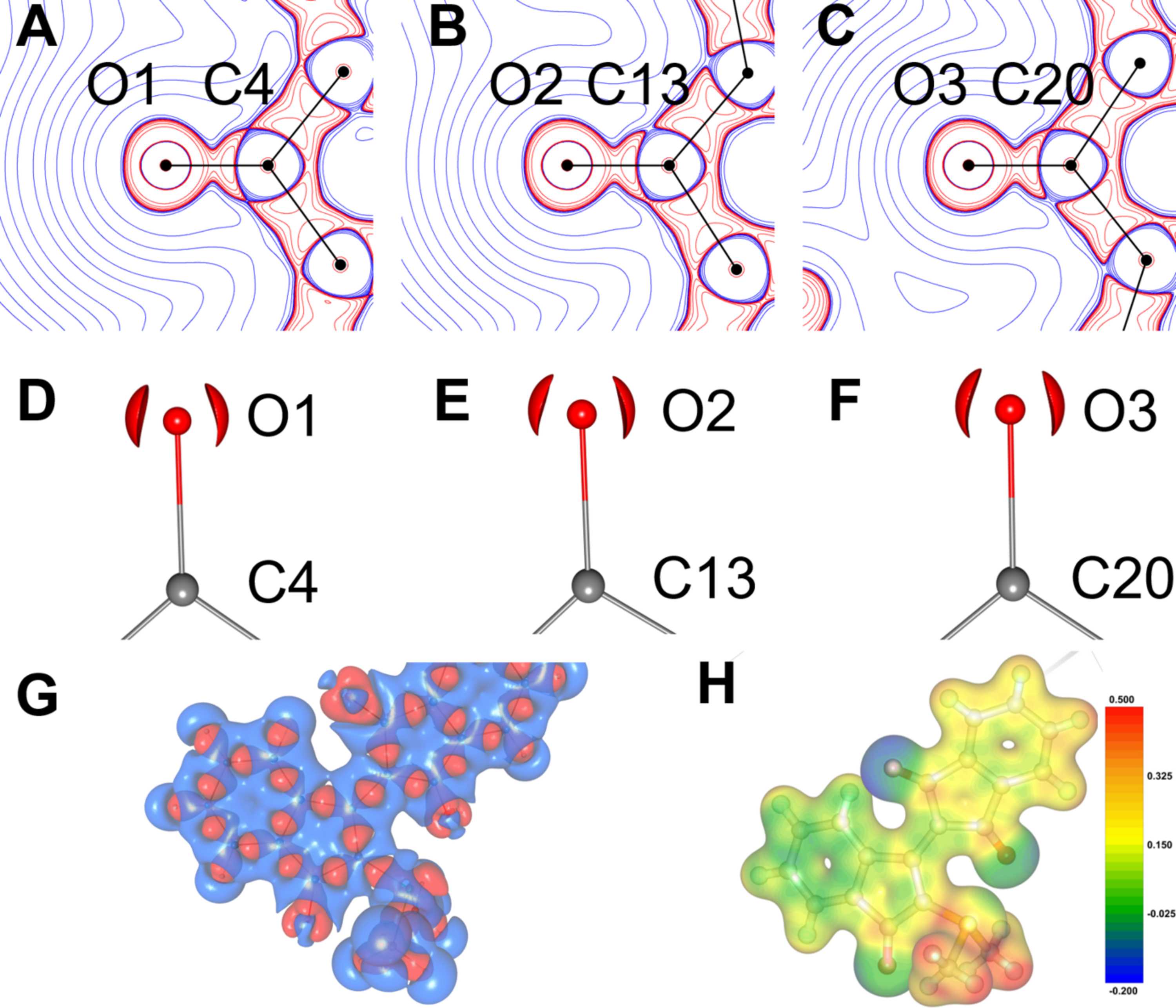

Two-dimensional Laplacians (panels A–C, −50 to 50 e Å−5, logarithmic iso-levels), 3D carbonyl Laplacians (panels D–F, at the −100 e Å−5 iso-level) and 3D Laplacians (panel G, at the 0.2 e Å−5 iso-surface) of the total electron density in the MM Mo Kα model of the carbonyl groups in WYLID. Blue lines show negative Laplacian values and indicate valence-shell charge concentration. Red lines show positive Laplacian values and indicate valence-shell charge depletion. Panel H shows the electrostatic potential in e Å−1 mapped onto the static total electron density at the 0.2 e Å−5 iso-surface.
