Figure 11

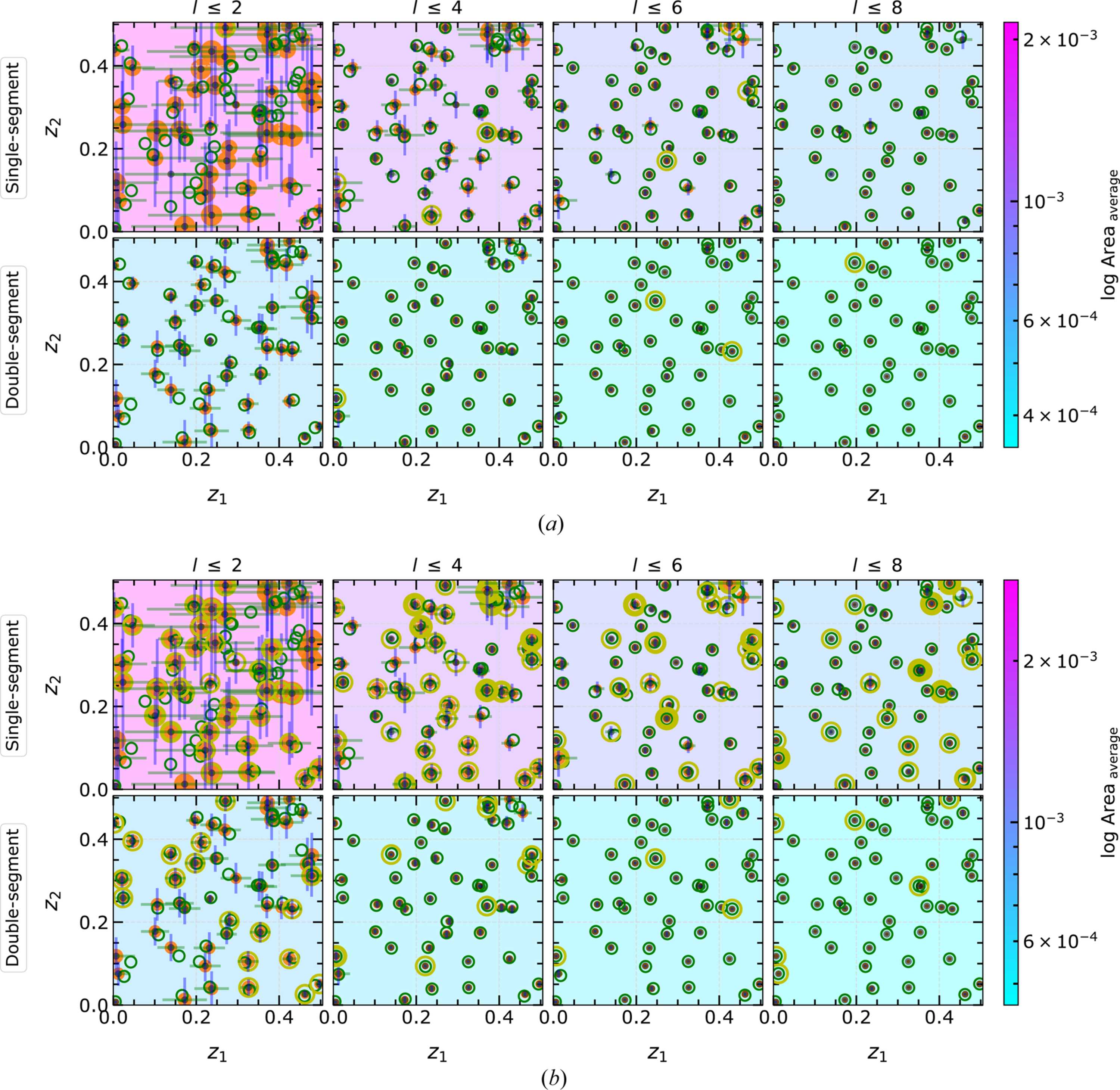

Results of MC simulation using single- and double-segment linearization with amplitude (a) and intensity (b) approaches. The green circles surround the centroid of the solution region within the EPA framework. When more than one solution region is available, the number is represented by the yellow circle (increased thickness for a larger number, cf. Fig. 15). The green and blue bars are the positional uncertainties on the computed z1 and z2, respectively. The area of all solution regions is summed to calculate the radius of the virtual circle as [\sqrt{{\rm {area}}/{\pi}}], shown by the orange circle. The background color is defined by the average area of the solution regions of all random pairs, normalized to the overall minimum and maximum for all presented settings.
