Figure 12

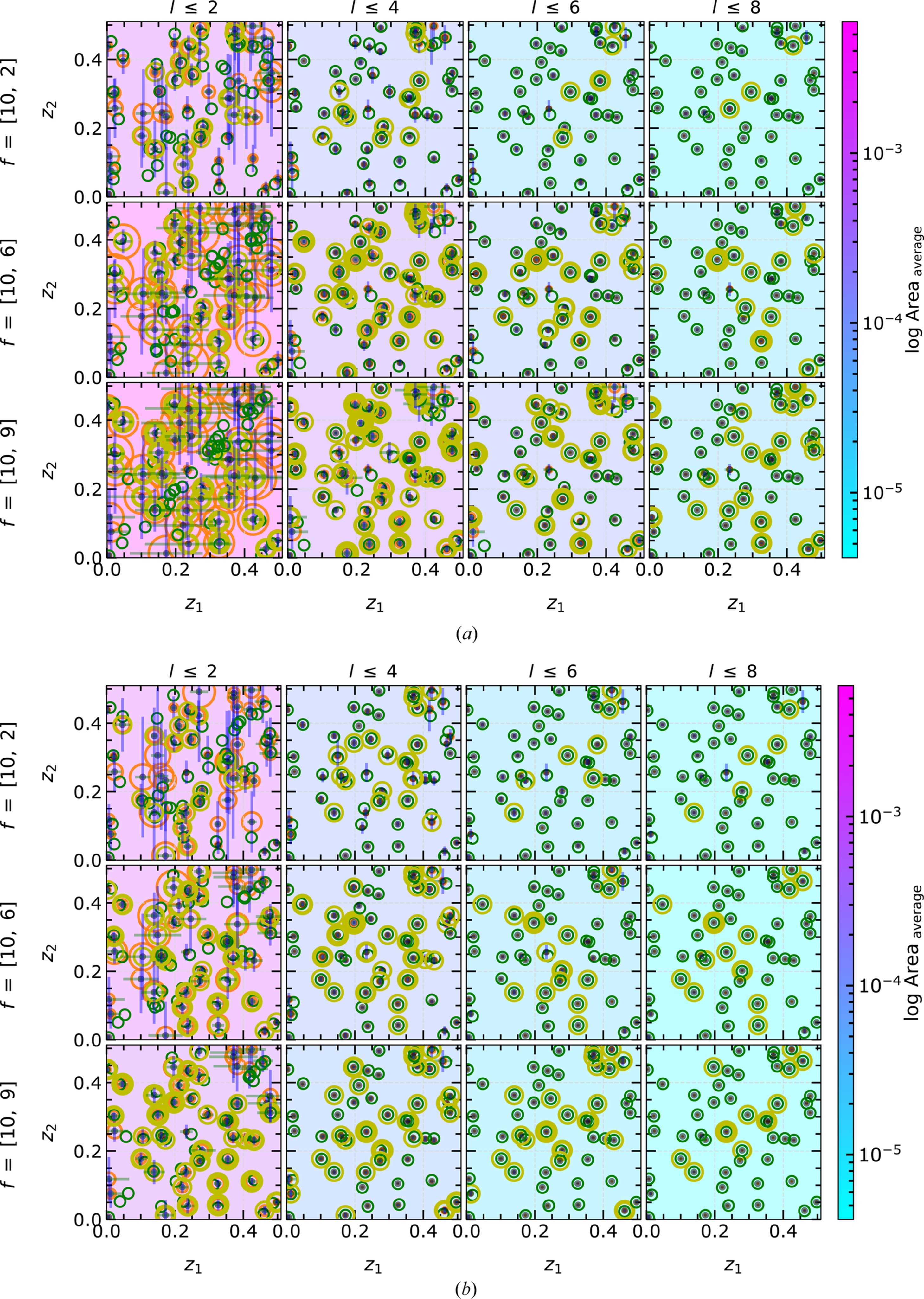

Solved atomic coordinates for (a) single- and (b) double-segment approaches using intensities within the non-EPA framework. The atomic scattering factors [f1,f2] in equation (2)[link] are set to [10,2] (top row), [10,6] (middle row) and [10,9] (bottom row) to represent heavy–light, heavy–medium and similar atom combinations along the z1 and z2 directions. The results are shown for the increasing number of reflections involved in the solution-finding process. The black dots, green circles and yellow circles (increased thickness for a larger number, cf. Fig. 16) represent the generated random atomic coordinates, the centroid of the solution region and the number of solution regions obtained, respectively.
