Figure 13

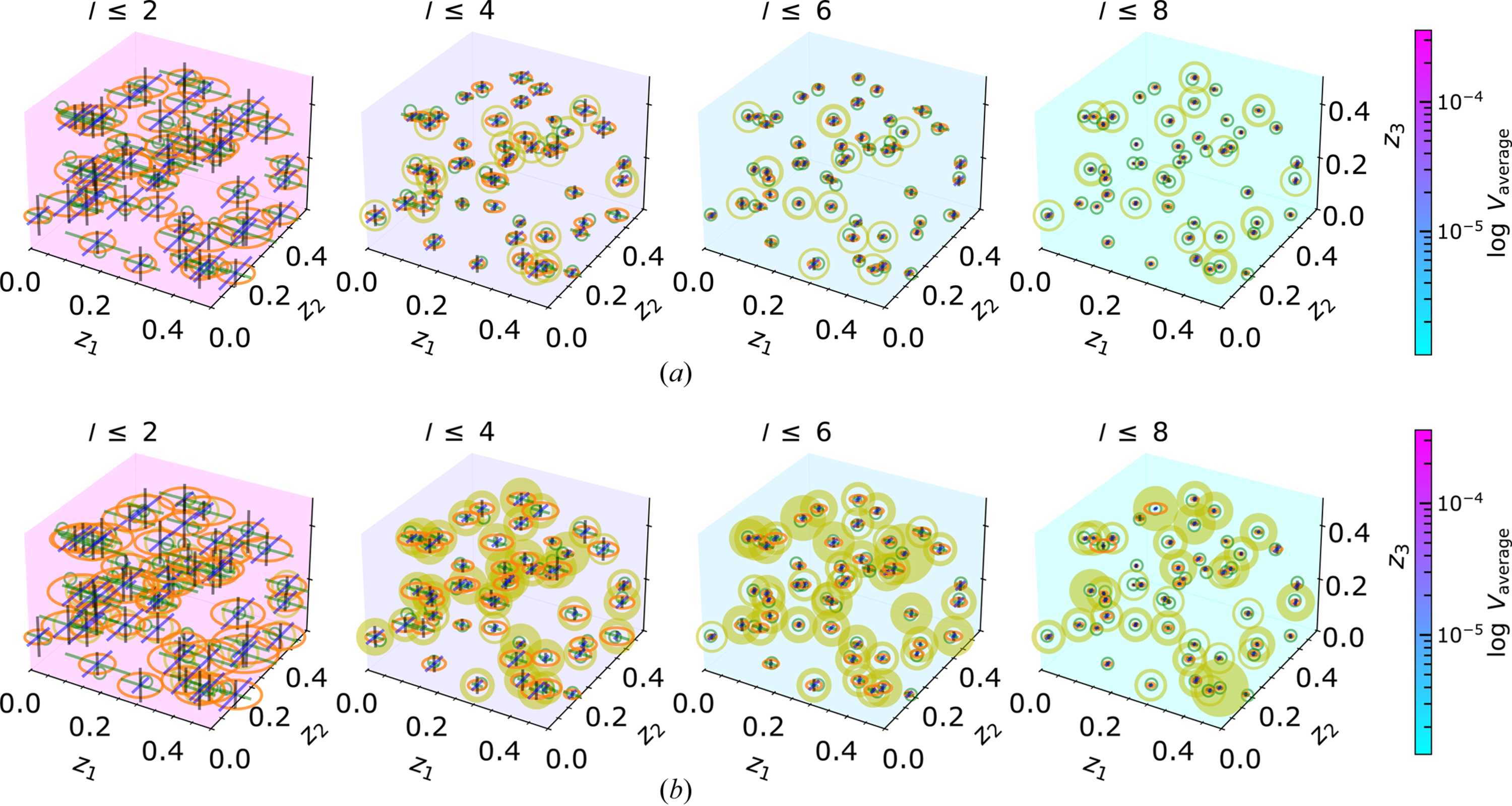

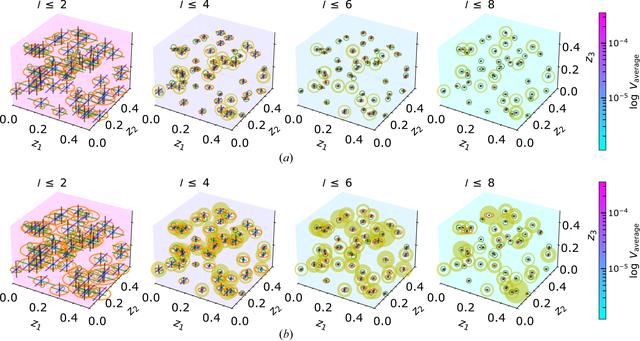

Results of MC simulations for [m = 3] within the EPA framework. The generated atomic coordinates are solved using amplitude (a) and intensity (b). The green circle represents the centroid of the polytope that encompasses the given atomic coordinates. The cross on each point indicates the error along each zi direction. When more than one solution region is available, the number is represented by the yellow circle (increased thickness for a larger number, cf. Figs. 17 and 18). The volume of all found solutions V is summed to calculate the radius of the virtual sphere as [{\cal R} = \root 3 \of {3V/(4\pi)}], which is represented by orange circles. The background color represents the average polytope volume of all solution regions of all considered coordinates.
