Figure 15

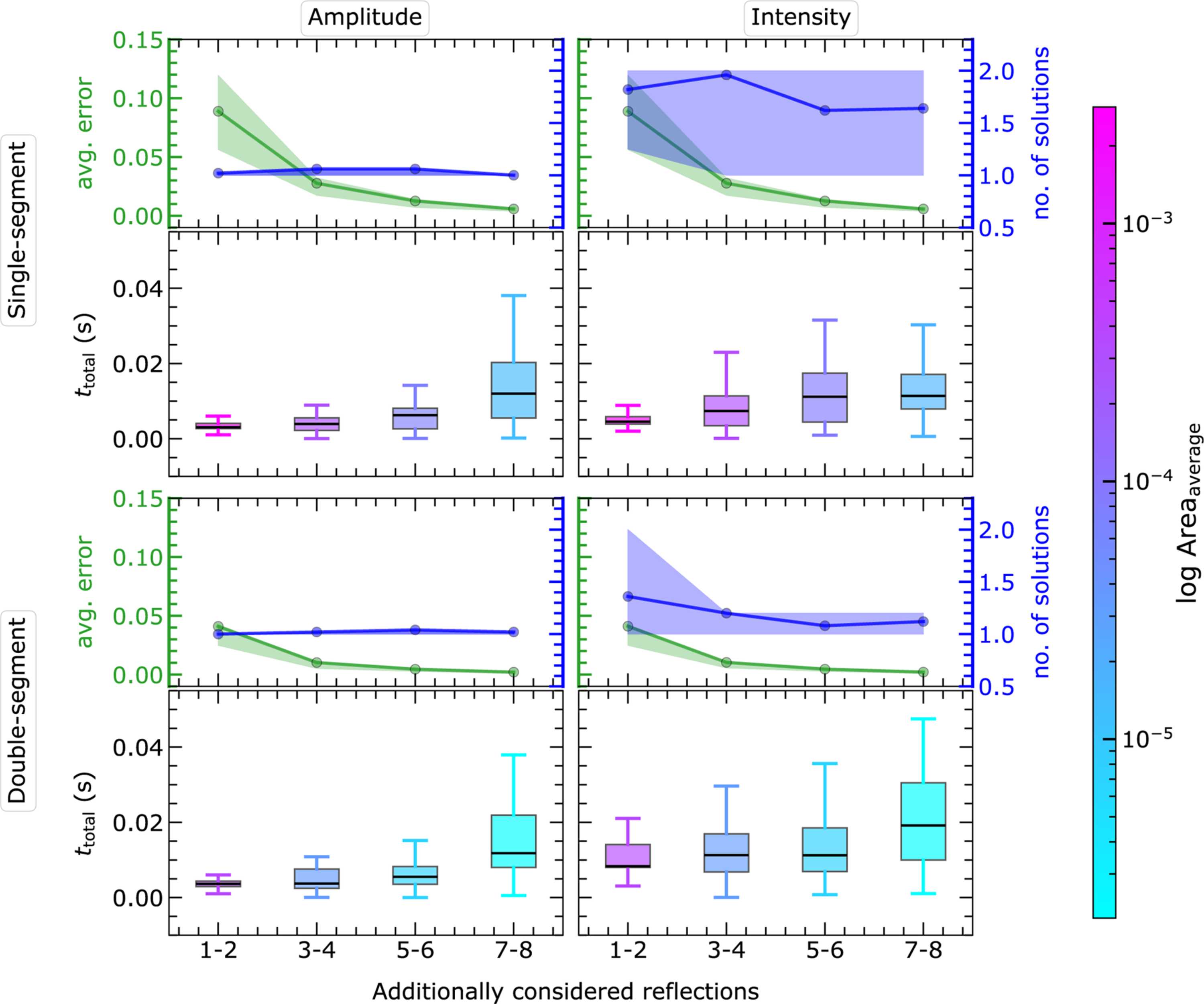

Incremental increases of [t_{{\rm total}}] consumed for MC simulation within the EPA framework in [{\cal P}^{2}], including time for linearization, polytope creation, repeating in the complete PS, intersection between successive reflections and writing found solution details to an HDF file. The timing information is presented as boxplots, highlighting the median (black horizontal line), quartiles (ends of the color box) and whiskers (here, complete data range) (for details see Section S1). In addition, the average number of solutions and average maximum possible error on computed [{\bf z}] coordinates are also summarized. These two characteristics are described by the median (circle) and the whisker position (envelope). The color of the boxes represents the calculated average area of the solution regions, which can be compared with the color code given in Fig. 11[link]. The time information for the individual process is analyzed in detail in the supporting information (see Sections S3.1 and S3.2).
