Figure 2

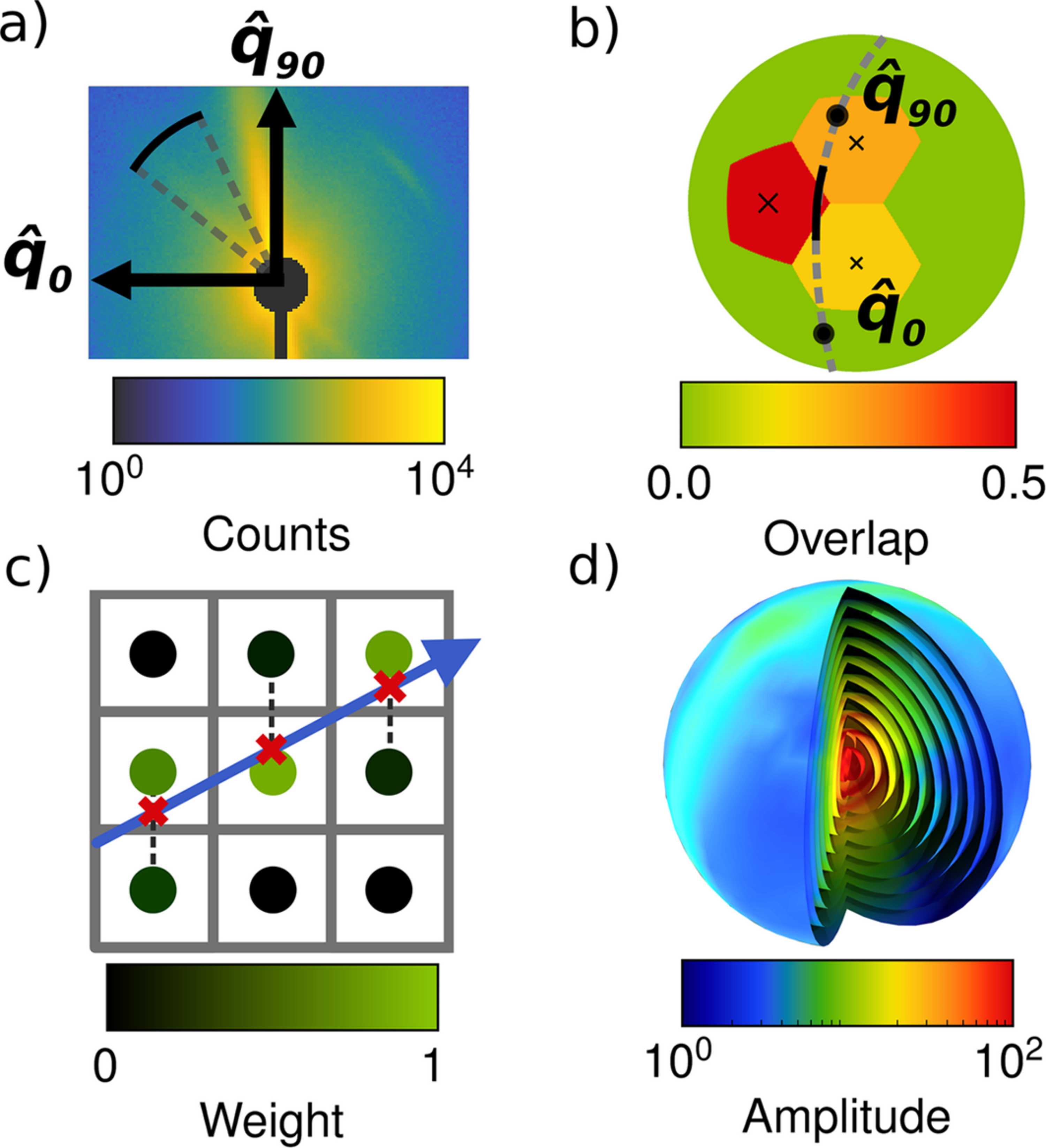

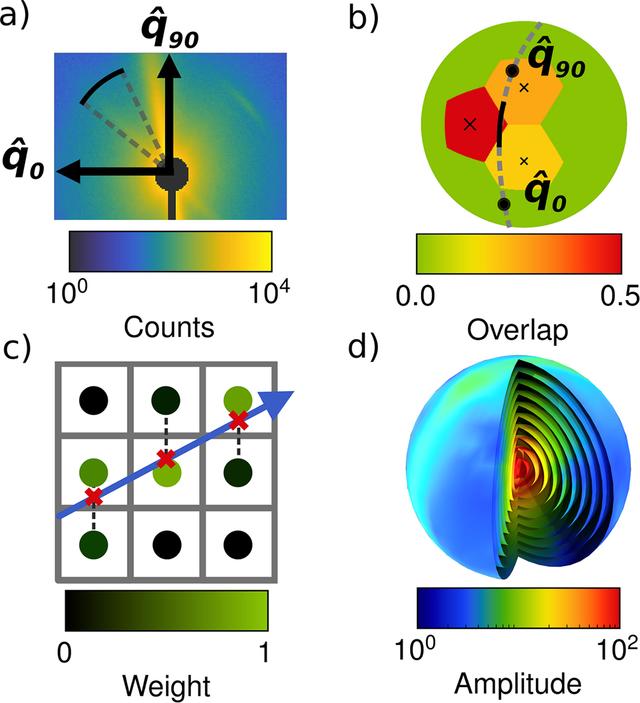

(a) Layout of vectors and angles on the detector. A single detector segment is marked with a thick black line. (b) Integrated basis function values Bsc,i plotted in a stereographic projection. The solid black arc corresponds to the single detector segment marked in panel (a). (c) Computed probing of each voxel by bilinear interpolation. (d) Splitting of a 3D-RSM into a stack of 2D-RSMs at fixed q lengths.
