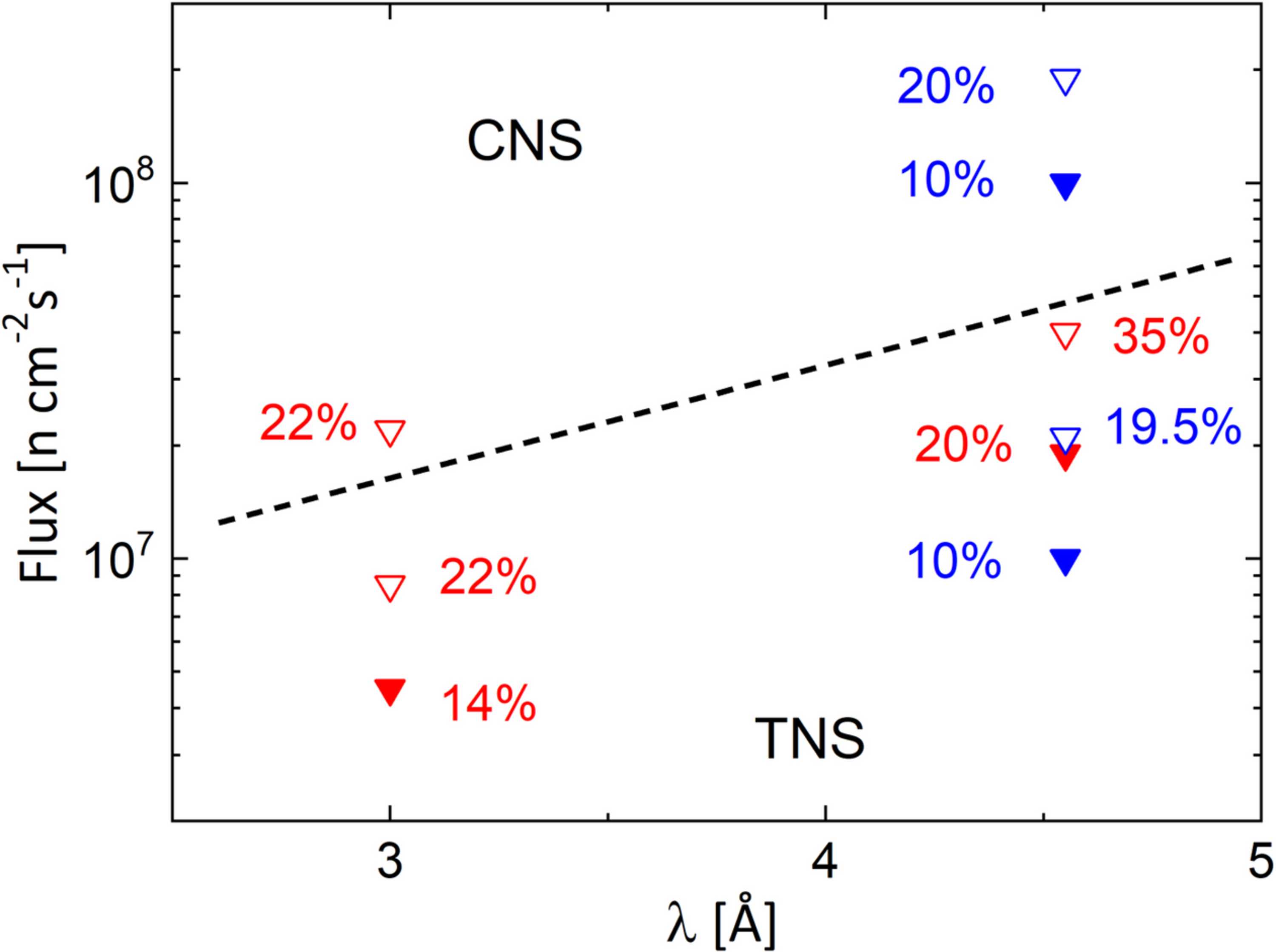

Figure 12
Summary of the results of the McStas simulations of the maximum flux at the sample position of KWS-2 for the various operating conditions considered. The broken line delimits the values obtained with the CNS or the TNS in operation. The open symbols represent the results with a `20%' velocity selector, while the filled symbols are for a `10%' velocity selector. The blue symbols show the results obtained with the selectors operating parallel to the beam axis, while the red symbols represent the selectors operating in an inclined position.
