Figure 8

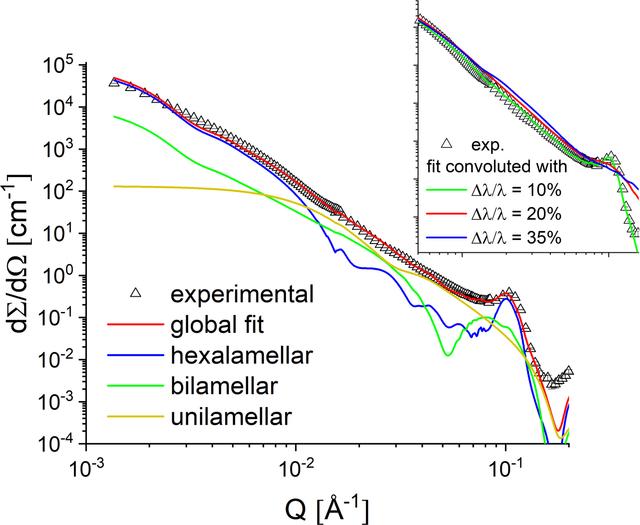

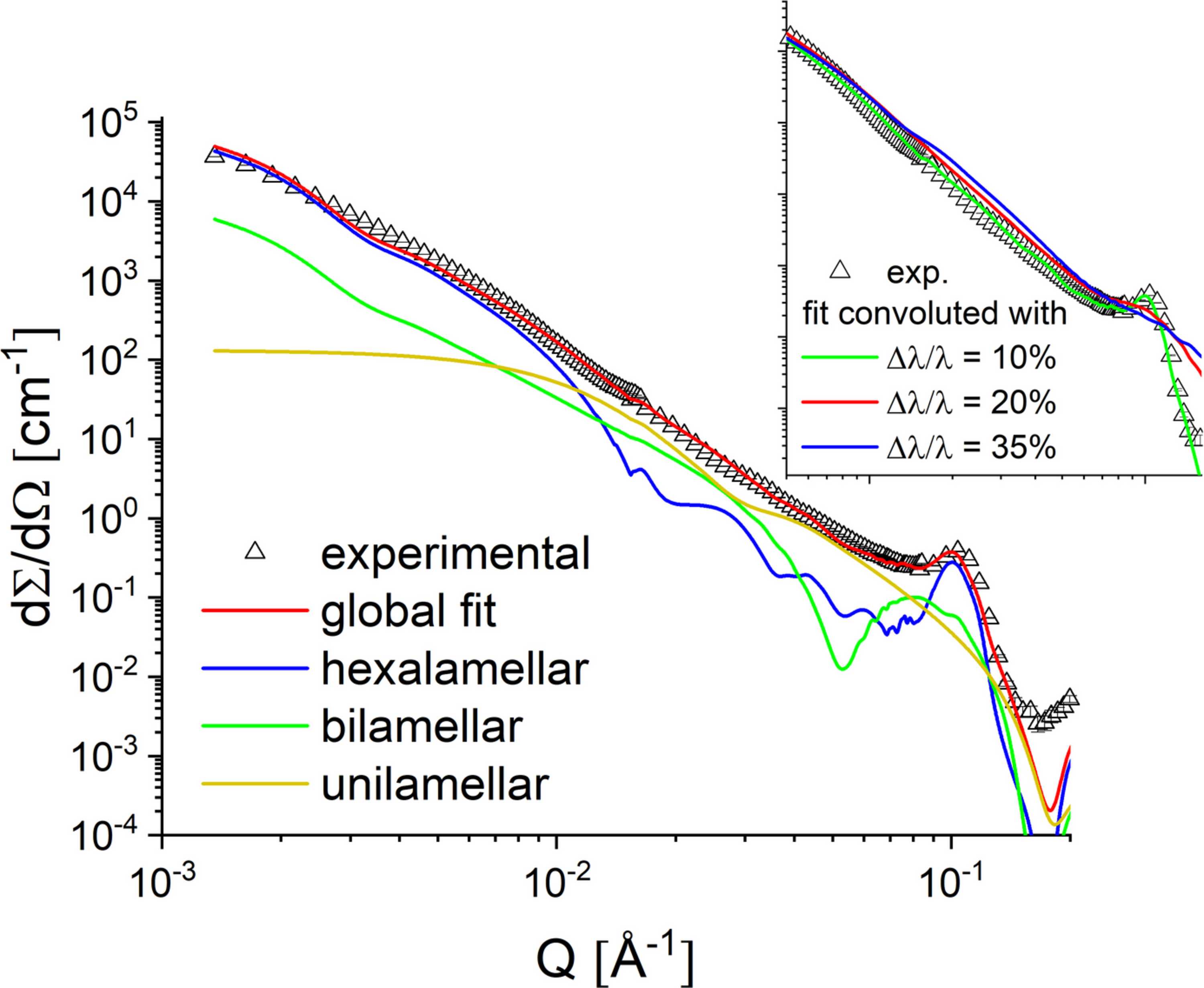

SANS of DPPC–MPOx2 (symbols) at 30 mg ml−1 in D2O at 25°C. The combined contributions of unilamellar (yellow), bilamellar (green) and hexalamellar (blue) vesicles to the SANS fitted curve (red) are shown. The inset displays the effect of different Δλ/λ resolution values on the global fit results: the sharp correlation peak attributable to the hexa­lamellar vesicles is barely observable when Δλ/λ ≥ 20%.
