Figure 7

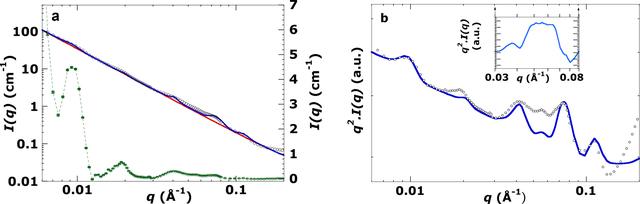

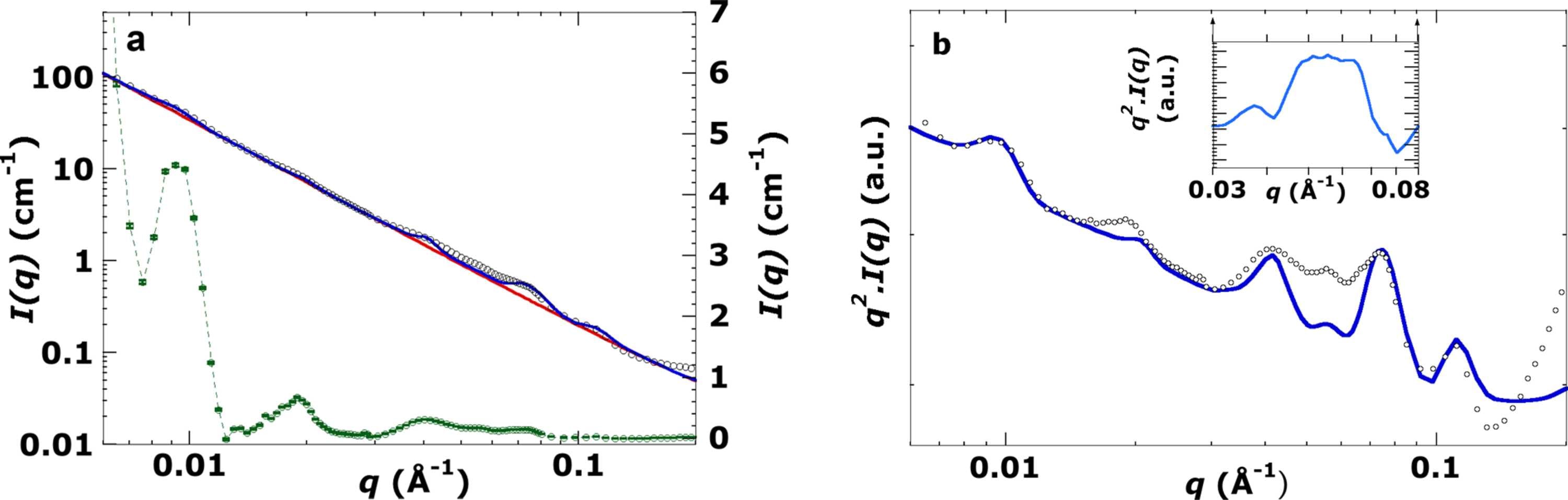

(a) Log–log SANS plot of live Symbiodnium algae in a live coral analogue, the glass anemone Aiptasia. Measurement at 32°C in 100% D2O. Small black circles are SANS data points. The blue curve is the fit refined using the visual inspection method (see Section A4 of the supporting information for more details of this method). χ2 = 22.8 (q = 0.008–0.15 Å−1, excluding q = 0.04–0.07 Å−1 – see text). The red curve is the background function refined by the visual inspection method (see Section A3 of the supporting information). The green curve is the linear plot obtained after subtracting the background function (red curve) from the SANS data (scale on right-hand side). Error bars on the green curve are the 1σ uncertainty in intensity (dI) at each q. Signals are well above the uncertainty in the green curve. (b) The same data as plotted in panel (a), now plotted as q2I(q) versus q.
