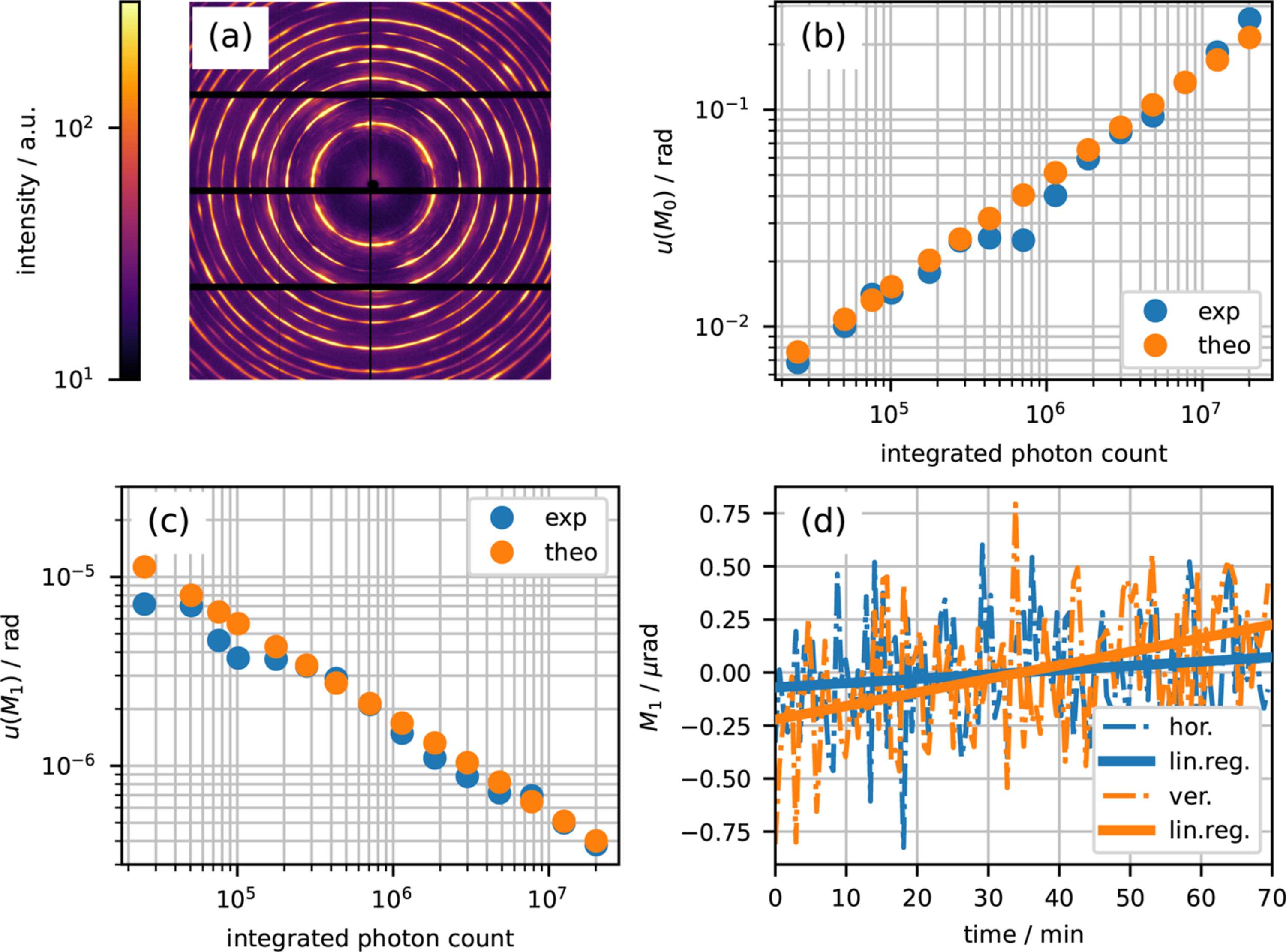

Figure 2
Sensitivity of XRD experiments at ID11 (ESRF). (a) Diffraction pattern of a martensitic steel sample acquired at the nanofocus station. Experimental and theoretical uncertainties of (b) the zeroth moment and (c) the first moment as a function of measured photon counts of the 321 diffraction ring with a Bragg angle of θ = 6.685°. (d) Horizontal and vertical angular setup stability measured over 70 min.
