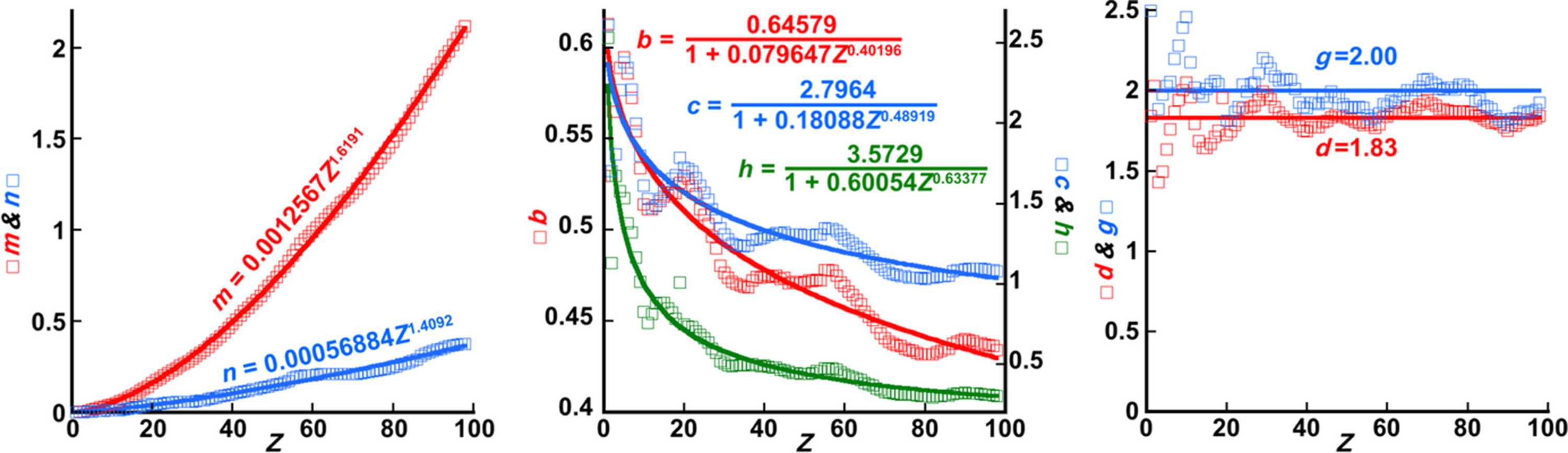

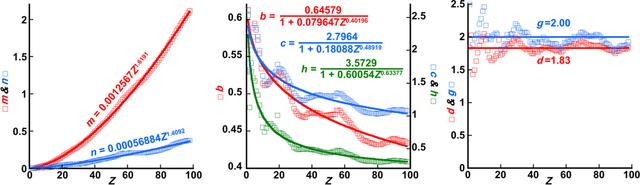

Figure 5
Plots of the variable parameters m, n, b, c, d, g and h (shown as coloured squares with colour coding indicated on the vertical axes) versus Z after fitting equation (10[link]) to fj′B&K(Zj, 0.05 Å2 ≤ Bj ≤ 2.0 Å2, E0 = 200 keV, 0 Å−1 ≤ s ≤ 6 Å−1) obtained from the ATOM subroutine. Parameters have been grouped into plots on the basis of similar behaviours with respect to Z. In every case, functions have been found that best fit the refined values of each of the parameters as a function of Z (solid lines in each of the plots) and these are written explicitly into each plot.
