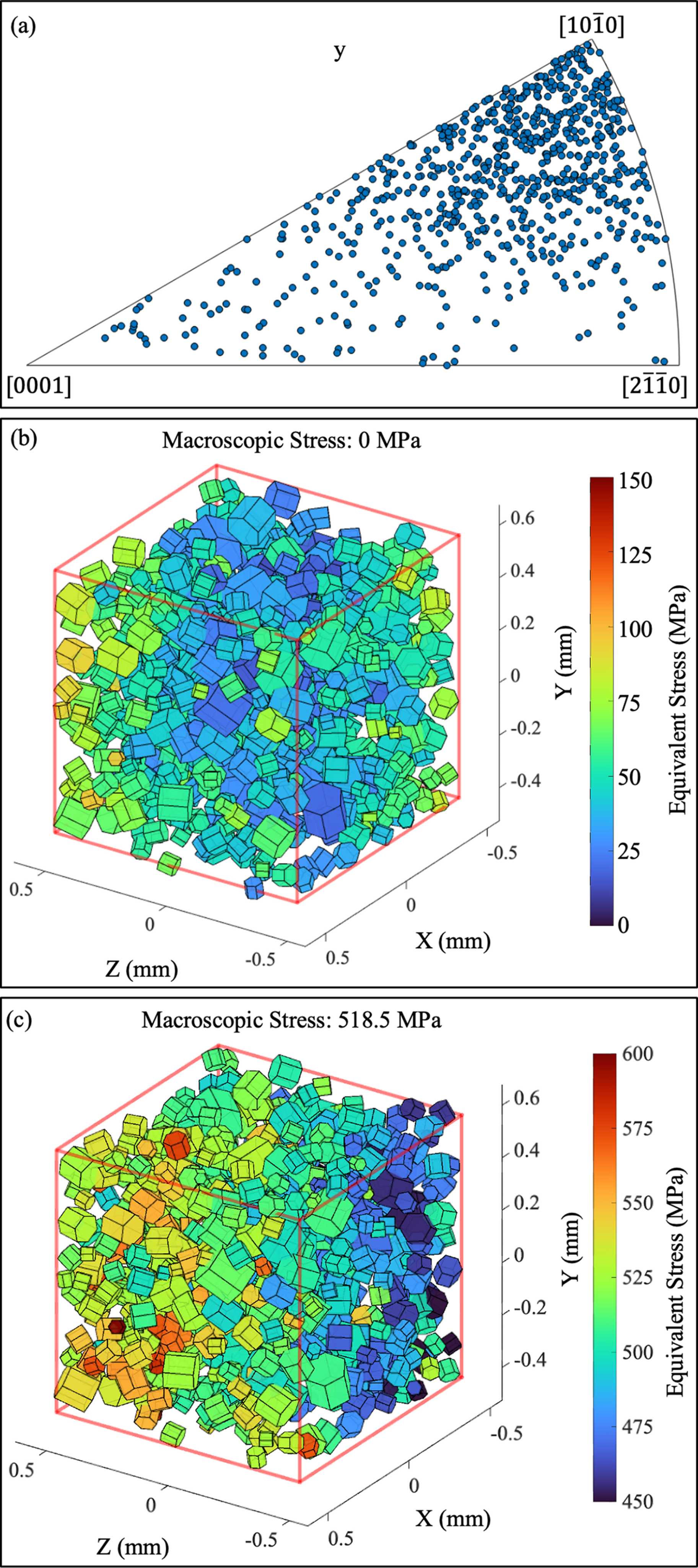

Figure 3
The ff-HEDM reconstruction. (a) Inverse pole figure showing orientations of the 752 grains used in analysis, with the IPF axis aligned with the loading direction. (b) and (c) Three-dimensional visualizations of the indexed grains at unload and at the first measurement during creep, respectively. Each hexagonal prism represents a grain, with prism size indicating relative volume, orientation indicating crystallographic orientation and color indicating equivalent stress. The stress gradient arises from a small bending moment imparted during sample gripping.
