Figure 12

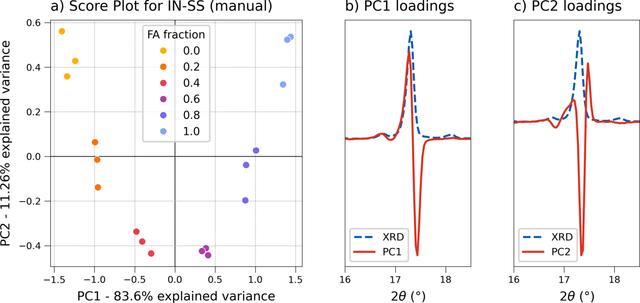

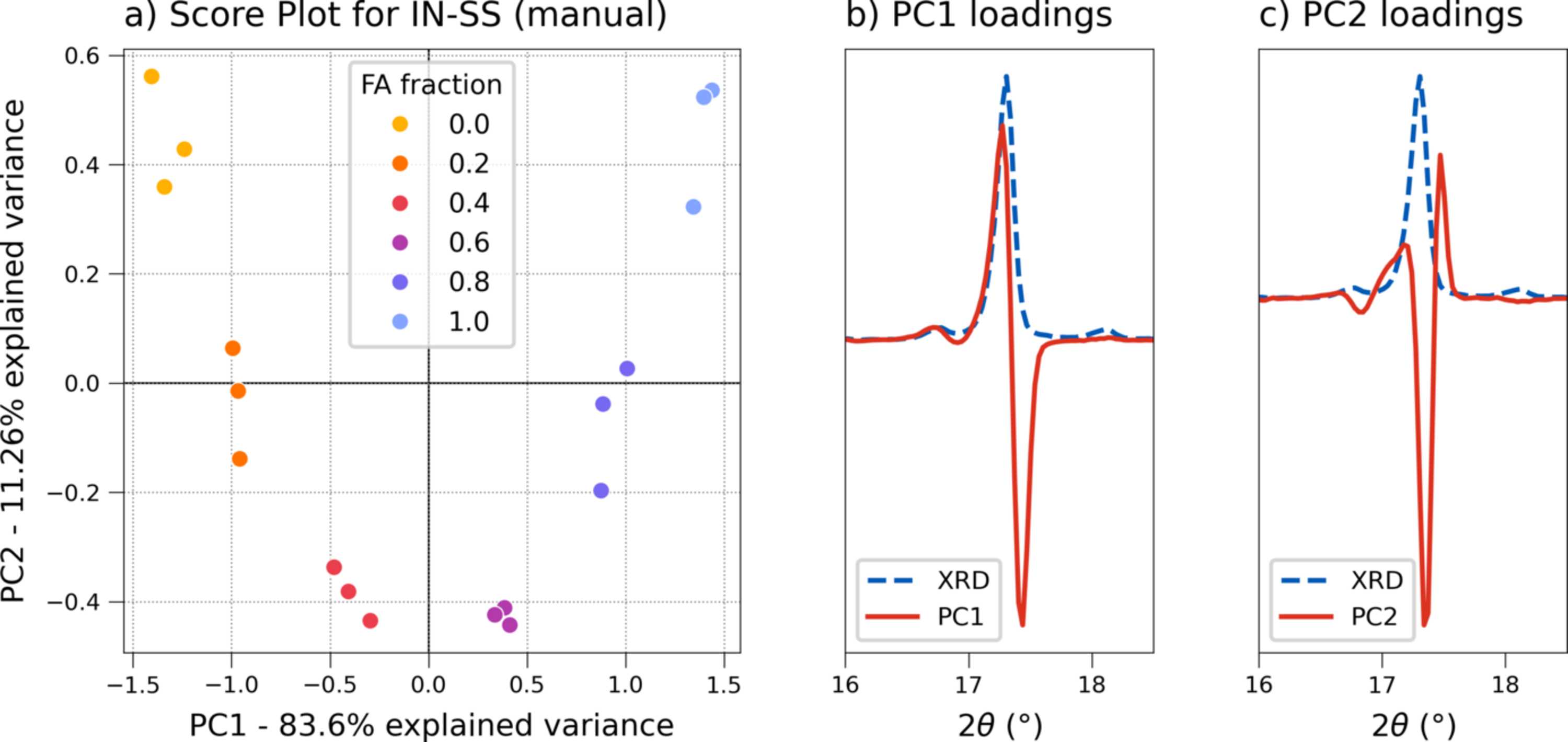

(a) Score plot (PC1 versus PC2) of the IN-SS calibration set (manual alignment). Details of the relative loadings plots for PC1 and PC2 are reported in panels (b) and (c), respectively (red solid lines), and compared with the experimental XRD profile (blue dashed lines) (see Fig. S10 for the full loadings profiles).
