Figure 3

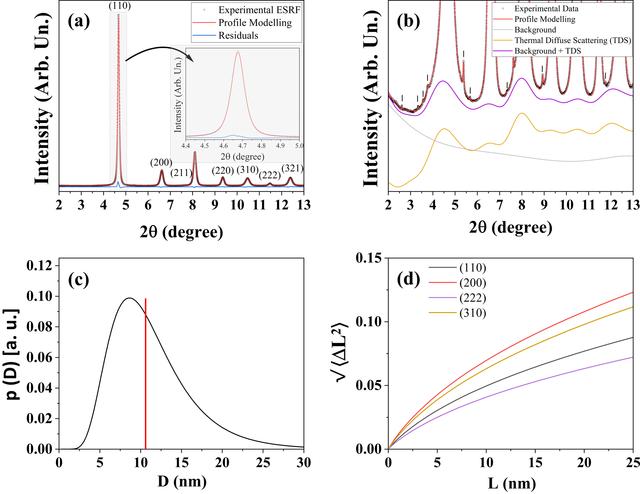

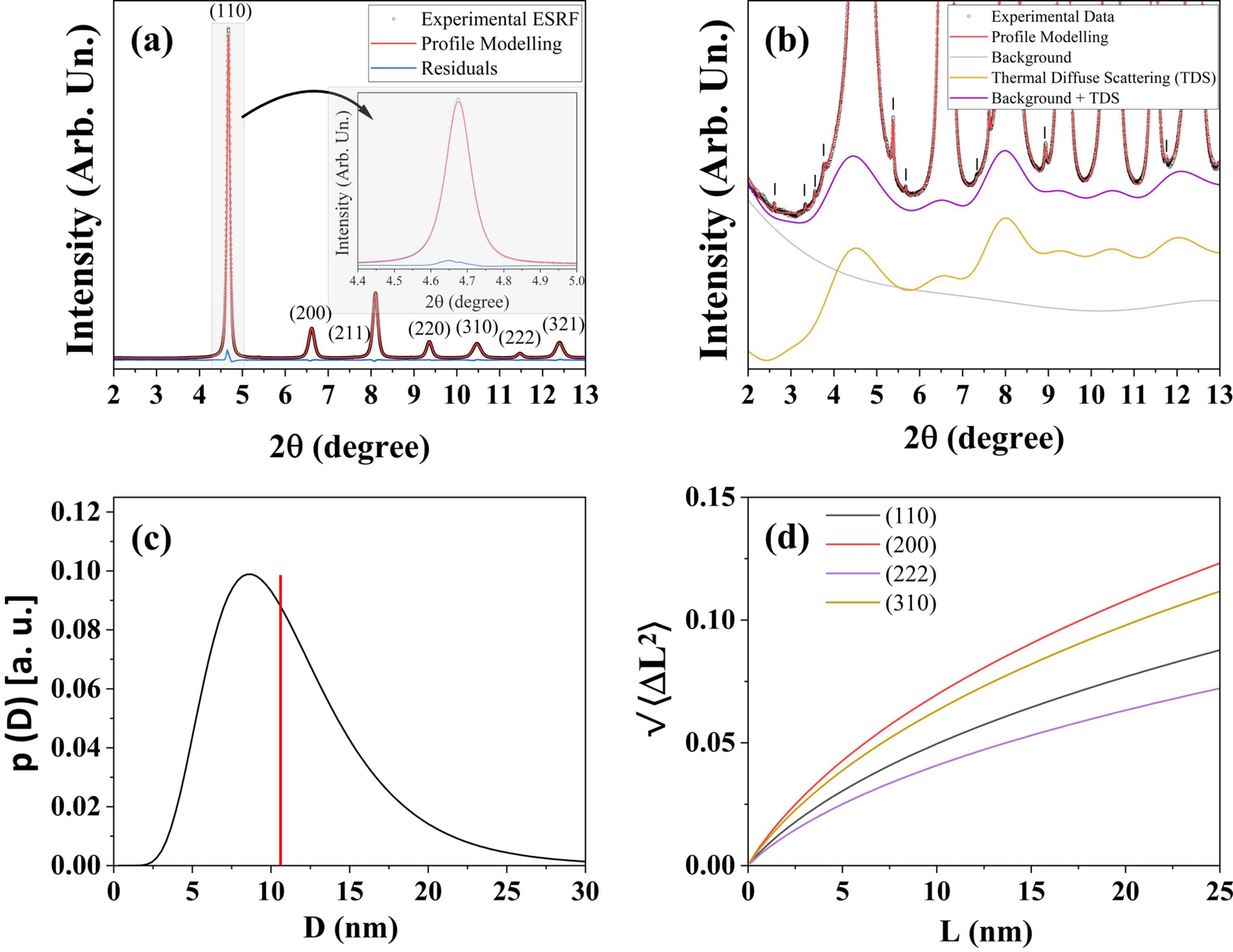

(a) XRD pattern for the Fe1.8Cr steel milled for 64 h obtained at the ID31 beamline at the ESRF synchrotron for 1500 mm SDD. Black dots correspond to the experimental data, red lines to the profile modelling and blue lines to the residuals. (b) Zoomed part of the diffuse component of the previous item (a). The grey line corresponds to the background, the yellow line to the TDS and the purple line to the sum of all terms above. (c) Distribution of the crystalline domain diameters. (d) Warren plots. Each colour represents reflections and corresponding crystallographic directions, with indices indicated in the inset.
