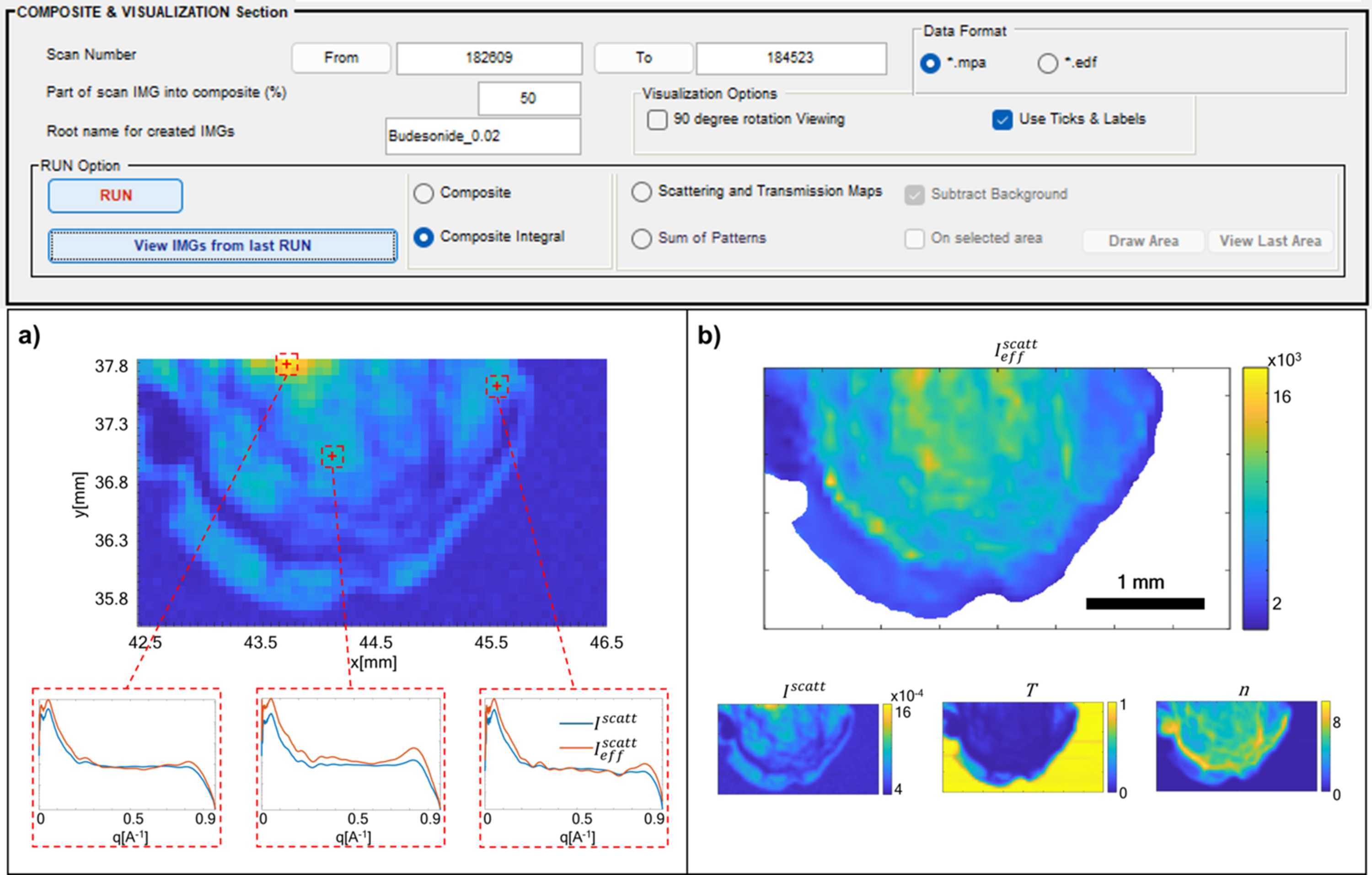

Figure 4
(Top) The new Composite and Visualization section. (a) The composite of a SAXS scan acquired at the XMI-Lab on a polymeric bead loaded with budesonide (D'Amico et al., 2023View full citation). The thus-obtained composite can be used to extract 1D profiles interactively from the selected scans (indicated by red crosses). The plots at the bottom show a comparison between Iscatt (blue) and [I^{\rm scatt}_{\rm eff}] (red) profiles obtained before and after data reduction. In both cases, a denoising algorithm has been applied (Siliqi et al., 2016View full citation). (b) Maps generated from the composite based on the parameters set in the Data Reduction panel: at the top the [I^{\rm scatt}_{\rm eff}] map calculated according to equation (6)[link], and at the bottom the Iscatt, T and n maps.
