Figure 2

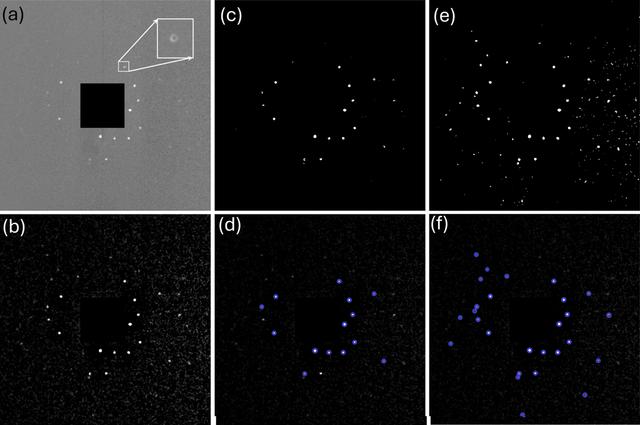

Example of a diffraction image and the processing routine: (a) normalized diffraction image; (b) after background removal and image processing; (c) and (e) binarized images of (b) using higher and lower threshold values, respectively; (d) and (f) corresponding detected diffraction spots. Each image represents a physical size of 112.5 × 112.5 mm2. The central black region is due to the beamstop (Beamstop 2 in Fig. 1[link]).
