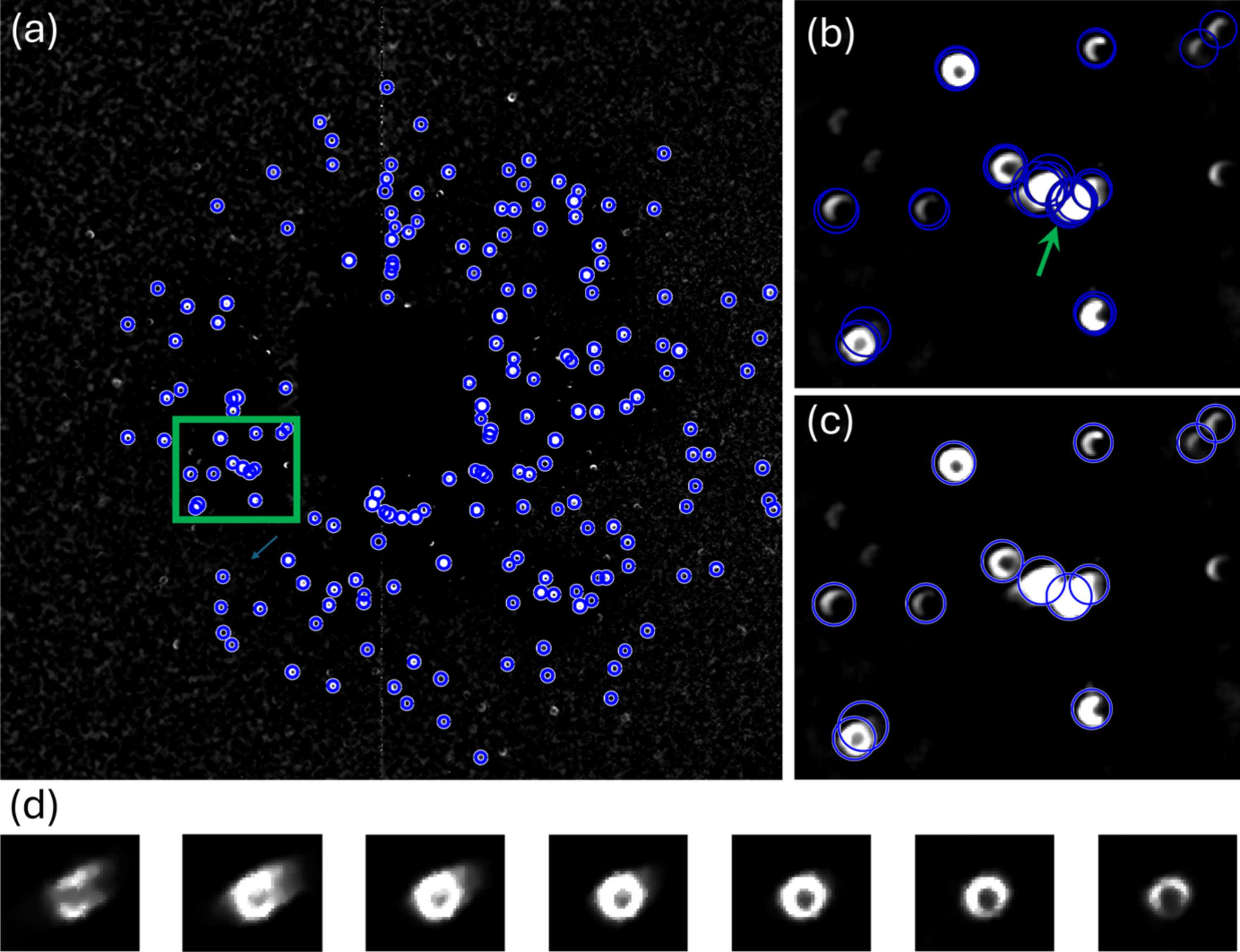

Figure 3
(a) Example of a set of diffraction spots, where those appearing at the same location on the detector are merged. (b) Magnified view of all detected diffraction spots from images collected at a −180° rotation angle, overlaid onto a sum of all diffraction images; and (c) the corresponding merged spot set in the region marked by the green rectangle. (d) Diffraction spot, marked by the green arrow in (b), appearing at different translation steps.
