Figure 5

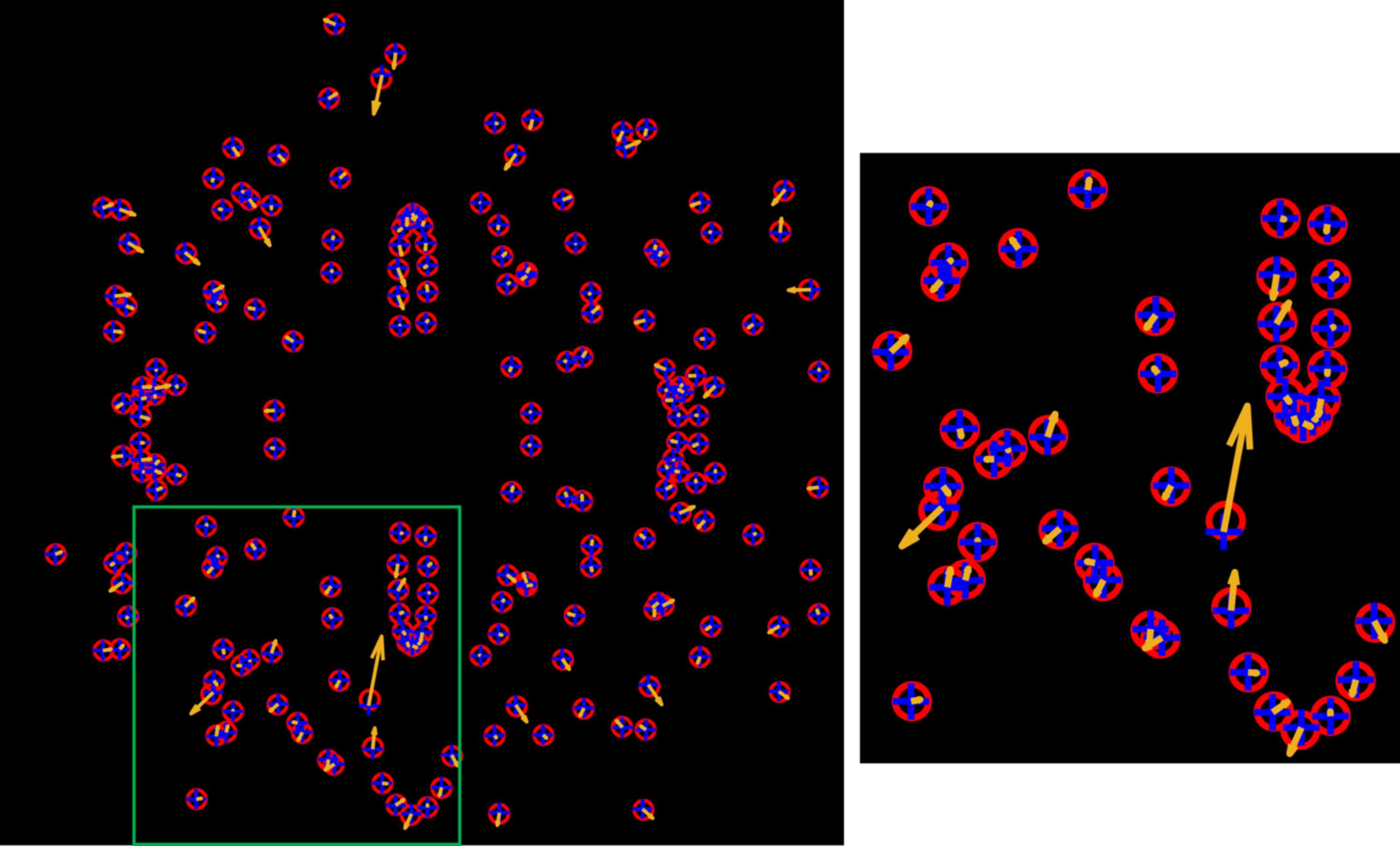

Comparison between experimentally observed, merged diffraction spots (shown as red circles) and their theoretical positions (marked by blue crosses) for a relatively large grain. This image consolidates all the diffraction spots from the first ten {hkl} families observed in the 36 integrated diffraction images. The orange arrows indicate the direction and relative magnitude of the displacement between each pair of spots. The image on the right shows a magnified view of the region marked by the green rectangle.
