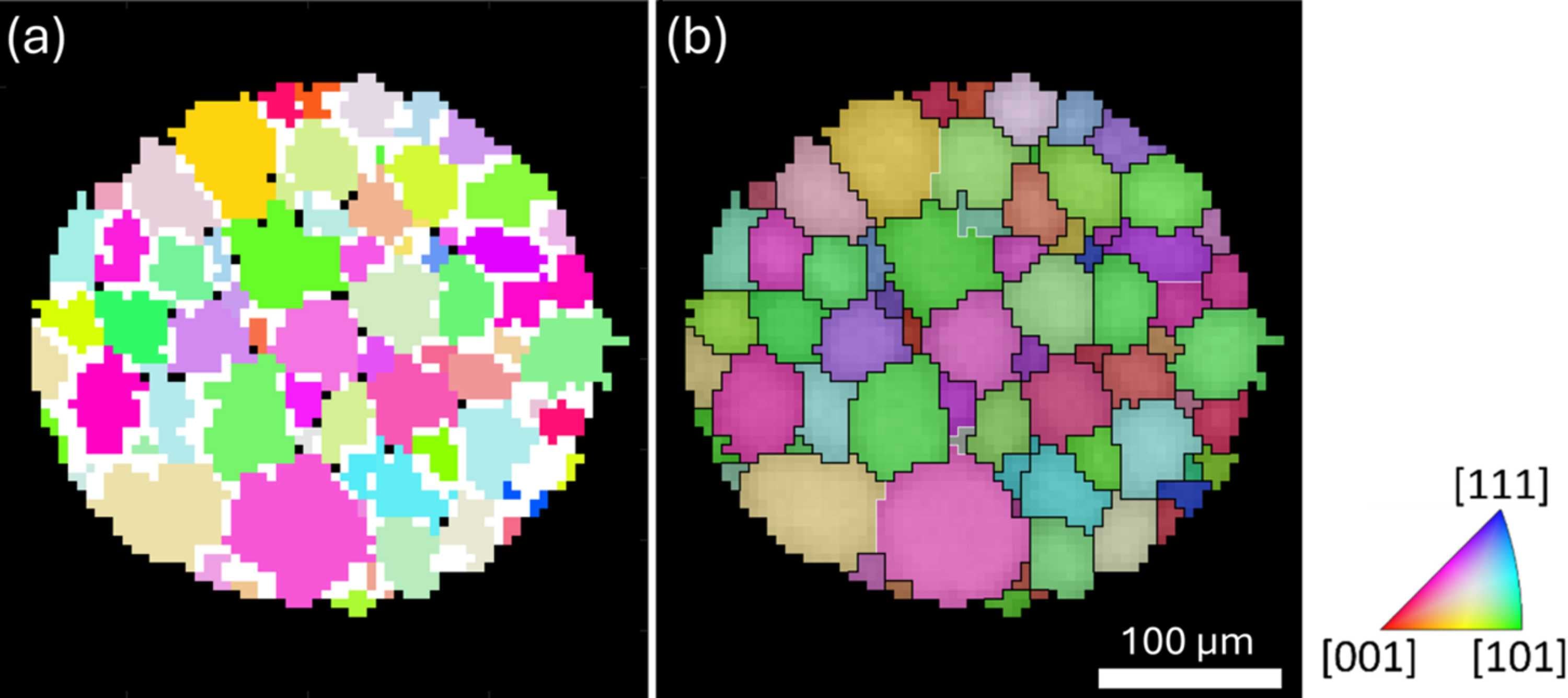

Figure 6
Reconstructed grain map. (a) Segmented grains assembled directly. The white and black pixels inside the sample volume represent overlapped and unindexed pixels. (b) Grain map after processing. White and black lines indicate boundaries with misorientation angles larger than 2° and 15°, respectively. The brightness of each pixel represents its completeness value.
