Figure 7

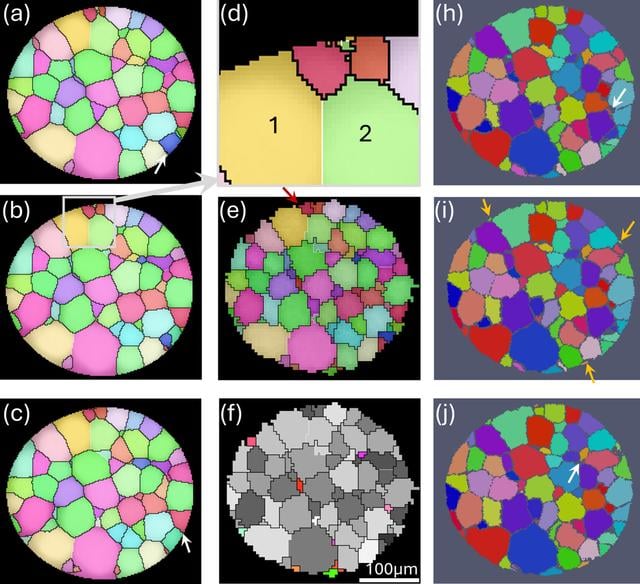

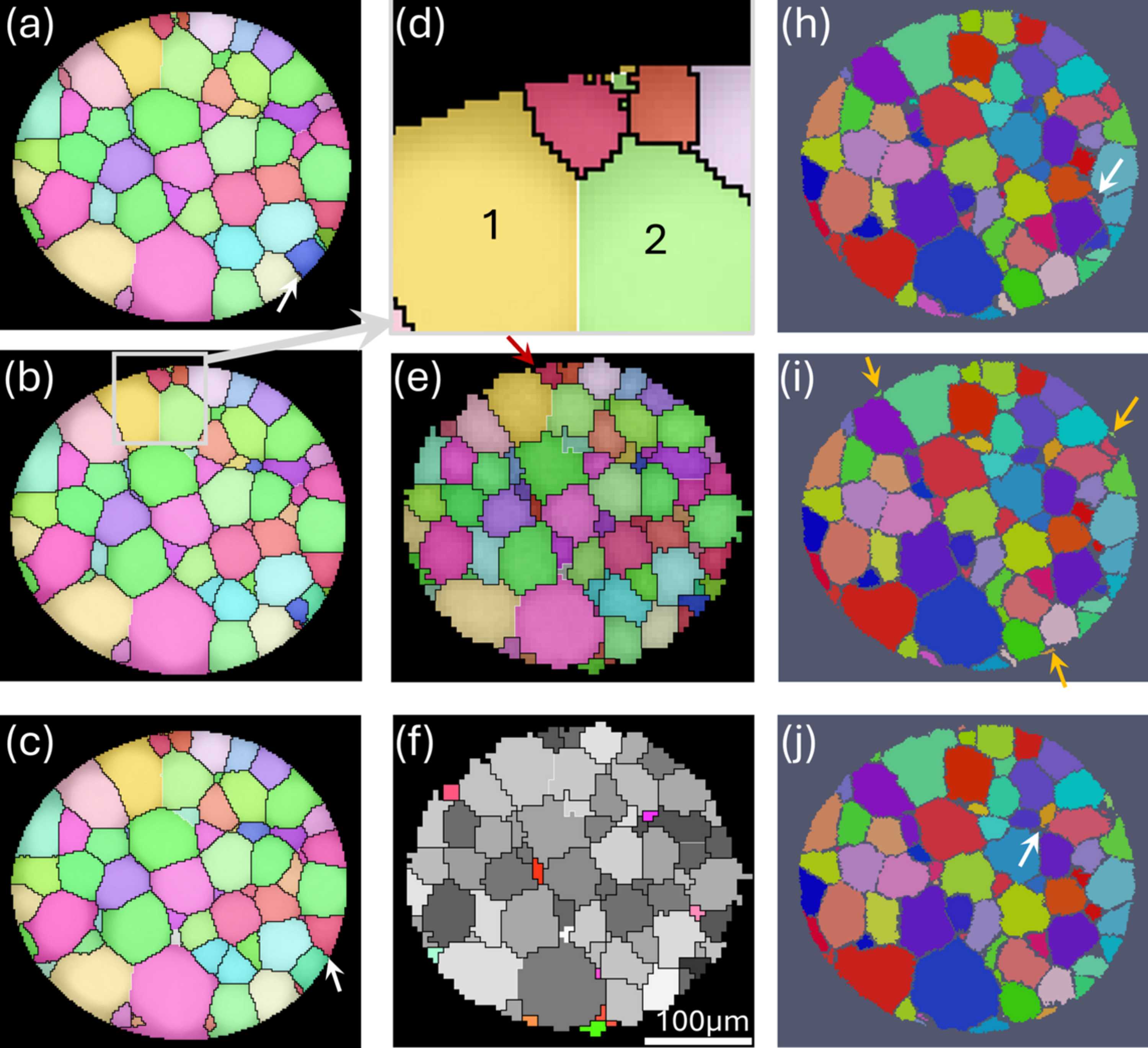

Comparison of LabDCT, Lab-3DµXRD and PCT. (a)–(c) Three sequential slices reconstructed using LabDCT with a voxel size of 2 µm. (d) Magnified view of the region marked by the gray rectangle in (b). (e) Lab-3DµXRD result reconstructed with a voxel size of 5 µm. (f) Grains indexed by Lab-3DµXRD but not LabDCT, highlighted in colors. (h)–(j) Three sequential slices showing the grain structure segmented on the basis of PCT results with a voxel size of 1.7 µm. The grains in the PCT data are randomly colored.
