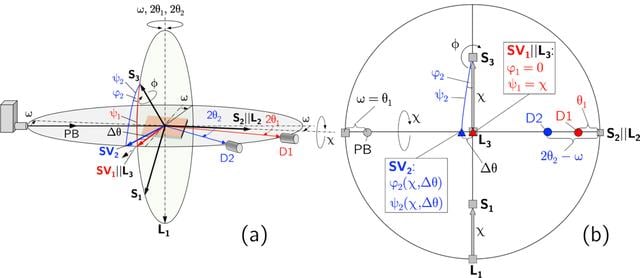

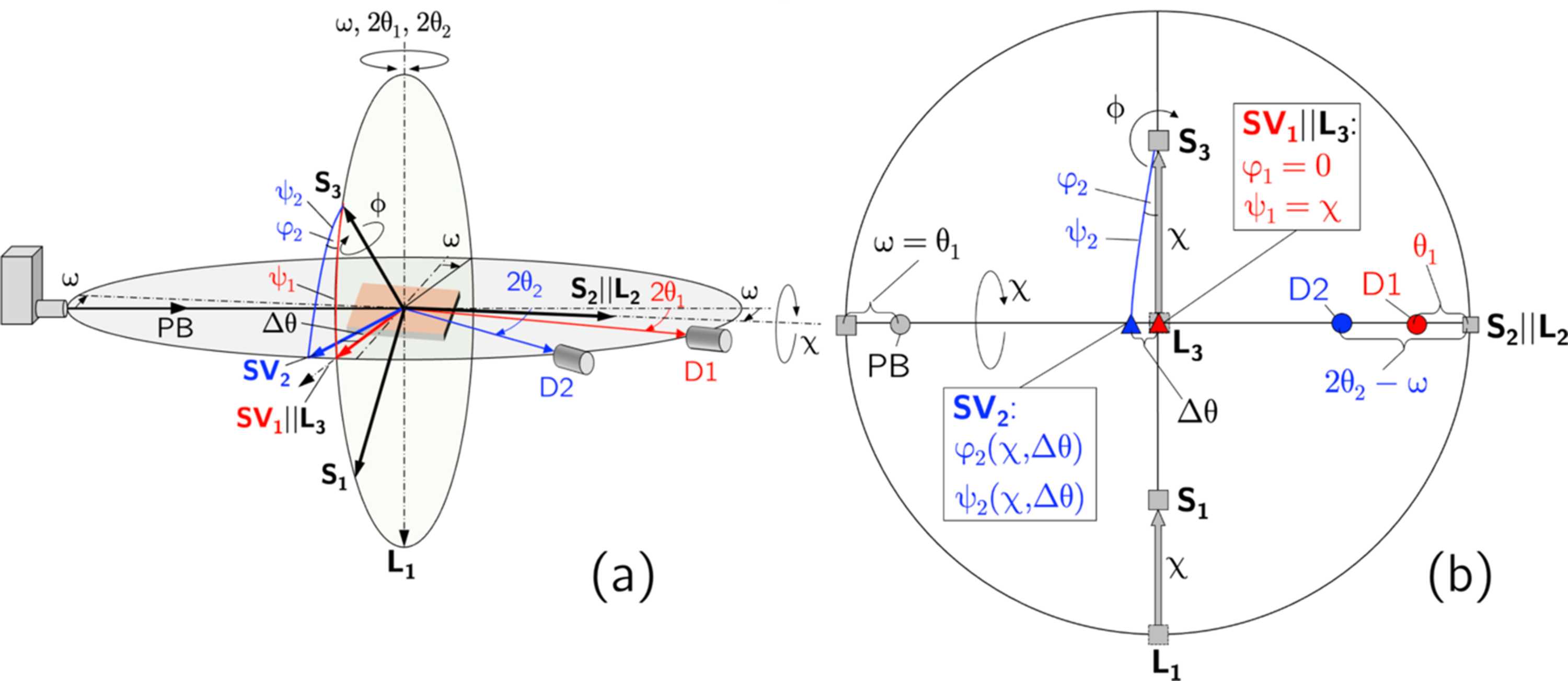

Figure 2
The horizontal two-detector configuration for an inclined sample orientation, realized by a χ tilt around an axis defined by the intersection line between the sample surface and the diffraction plane. (a) Schematic view and (b) stereographic representation of the setup. For the descriptions of the axes and angles, see Fig. 1 |
