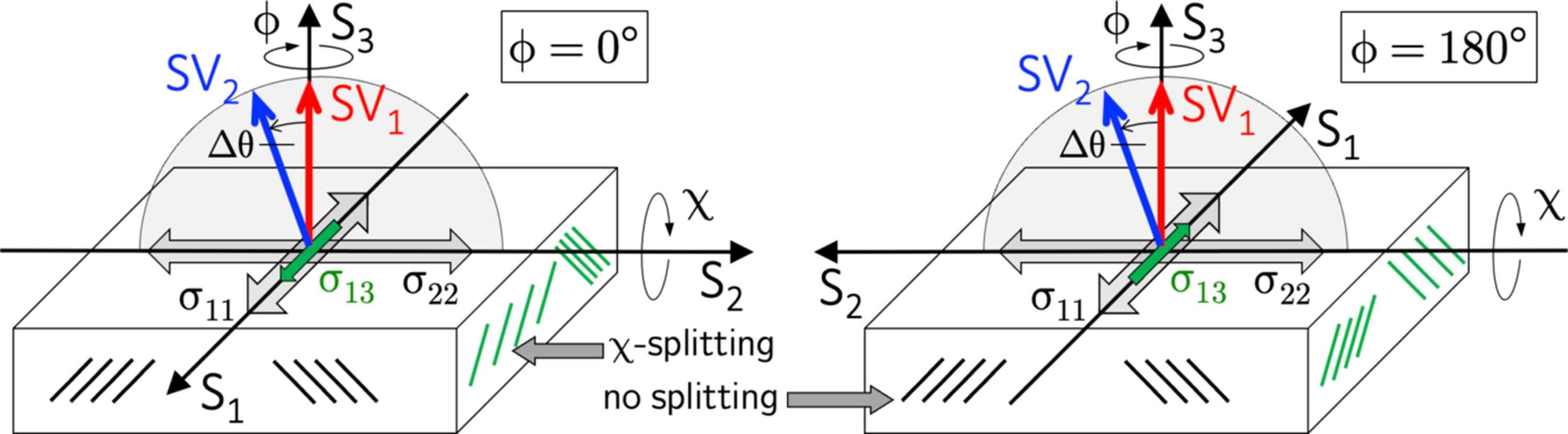

Figure 4
Schematic view of stress analysis along the grinding direction on a sample featuring a residual stress state according to equation (7[link]). For visualization reasons, the diffraction plane, which contains the two scattering vectors [{\bf SV}_{1}] and [{\bf SV}_{2}], is shown tilted by [90^{\circ}] into the paper plane.
