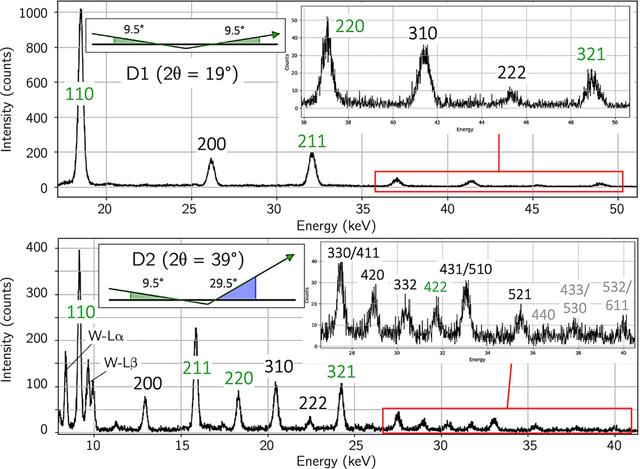

Figure 8
Diffraction patterns simultaneously recorded in the two detectors at [\chi = 0^{\circ}]. The diffraction conditions are symmetrical for detector D1 and asymmetrical (grazing incidence) for detector D2. The reflections marked in green feature the orientation factor [3\Gamma = 0.75] close to the model-independent orientation for ferritic steel (cf. Fig. 7[link]). The reflections marked in gray are weak and were not considered in stress analysis.
