Figure 4

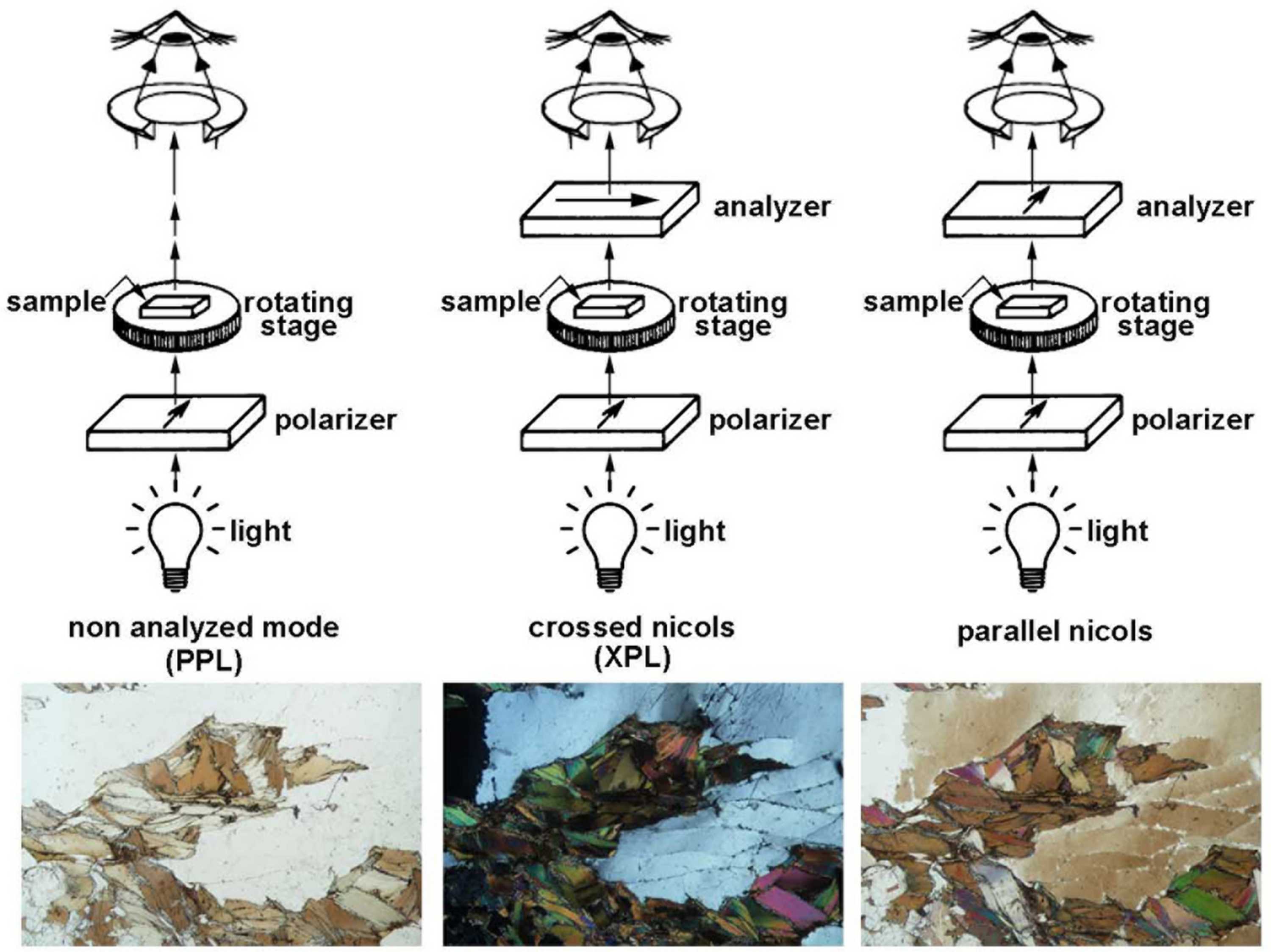

Schemes of three types of configuration in a petrographic microscope; the arrows on polarizers indicate their polarization directions. Left, plane polarized light (PPL); middle, crossed Nicols (XPL); right, parallel Nicols. Below each scheme is the resulting petrographic image of a rock containing quartz and biotite.
