Lattice strain relaxation in thin Mo films grown heteroepitaxially on MgO single crystals

Cejpek, P.; Motylenko, M.; Rafaja, D.

doi:10.1107/S1600576726000233

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 11

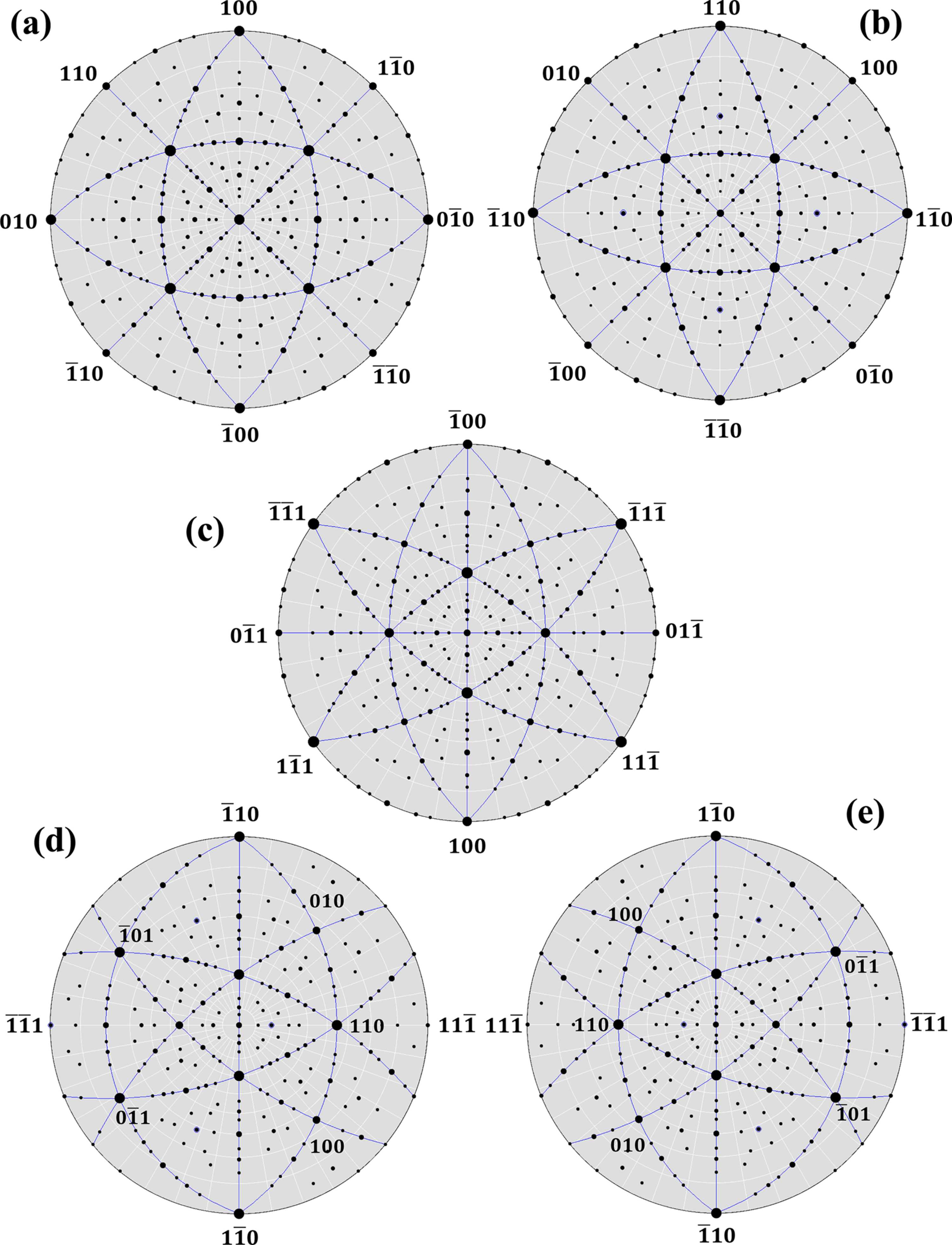

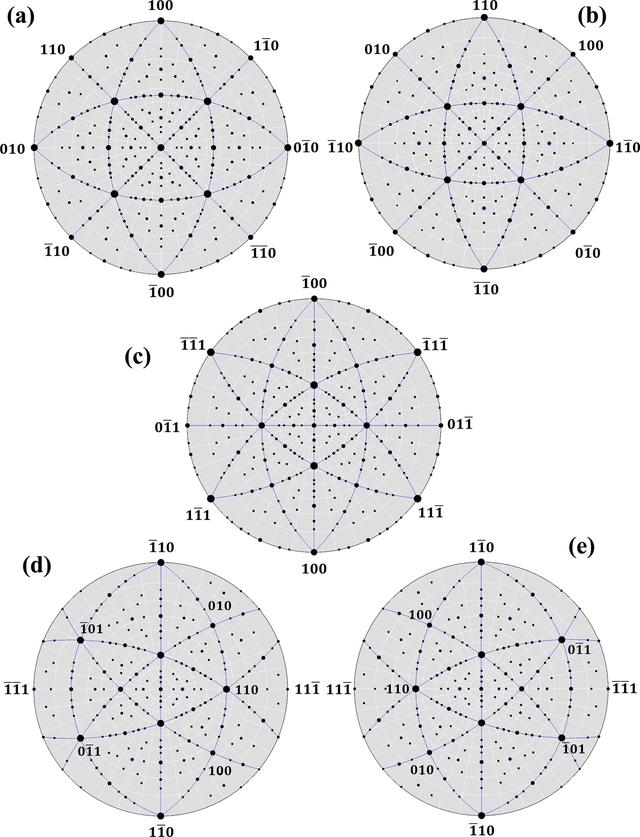

Stereographic projections (001) of face-centred cubic (f.c.c.) MgO (a) and (001) of b.c.c. Mo (b) having the orientation relationship $[(001)_{\rm{MgO}}\parallel(001)_{\rm{Mo}}]$ & $[[100]_{\rm{MgO}}\parallel[110]_{\rm{Mo}}]$ . Lines mark zones {110} (a) and {111} & {100} (b). Stereographic projections (011) of f.c.c. MgO (c) and (112) of b.c.c. Mo (d, e) having the orientation relationships $[(011)_{\rm{MgO}}\parallel(112)_{\rm Mo}]$ & $[[\bar{1}00]_{\rm{MgO}}\parallel[\bar{1}10]_{\rm Mo}]$ (d) and $[[\bar{1}00]_{\rm{MgO}}\parallel[1\bar{1}0]_{\rm Mo}]$ (e). Lines mark zones {110} & {100} (c) and {111} & {100} (d, e). The stereographic projections were plotted using WinWulff (Weber, 2018

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 1| February 2026| Pages 190-205

https://doi.org/10.1107/S1600576726000233
