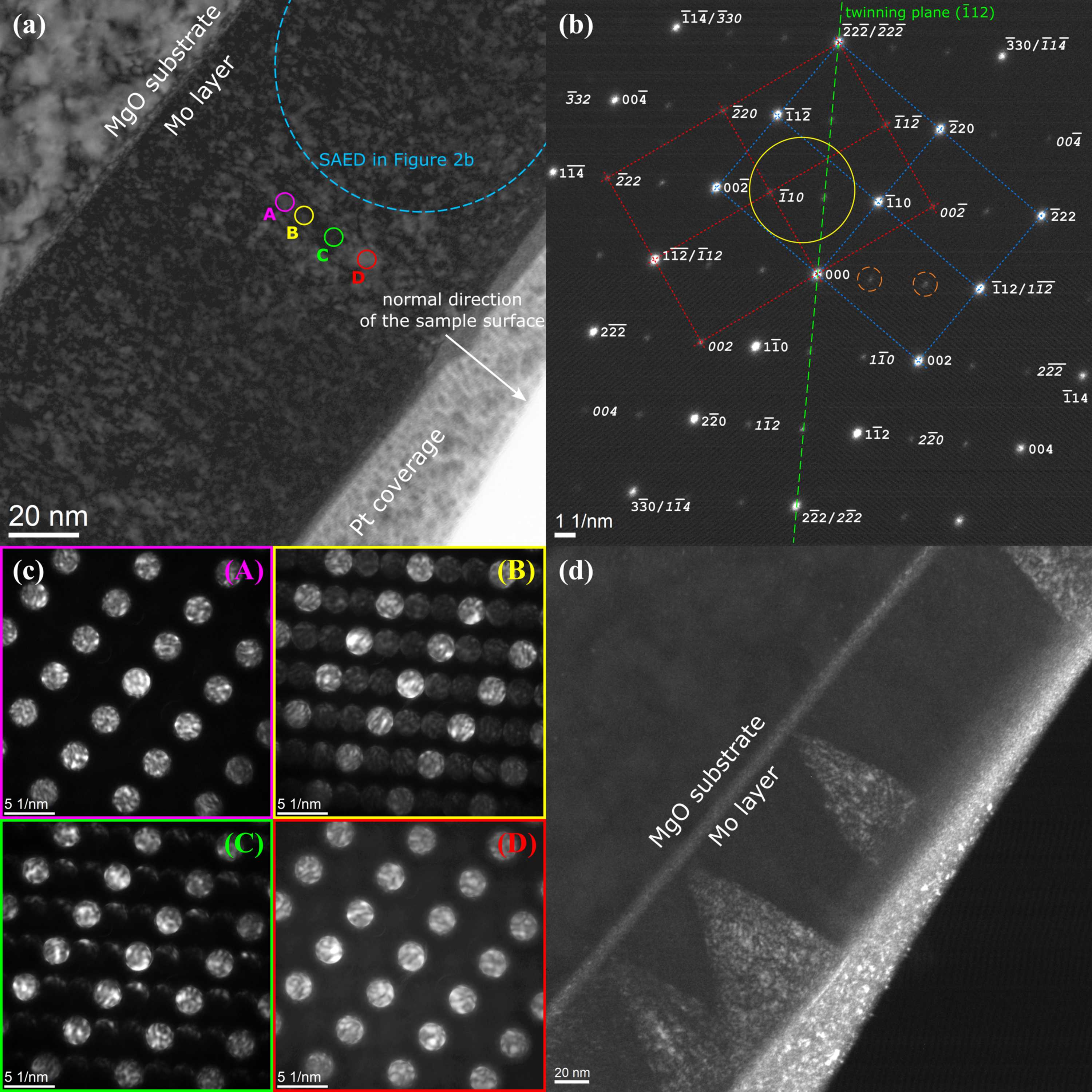

Figure 2
(a) Bright-field TEM image of the Mo film deposited on the (001)-oriented MgO substrate. The growth direction Mathematical equation is marked by the white arrow. The Pt cover layer stems from the FIB sample preparation. (b) SAED pattern obtained from the area marked by the large dashed circle in panel (a). Diffraction spots from the matrix are labelled in normal script and diffraction spots from the twins in italics. Non-indexed diffraction spots (two of them are highlighted by small dashed orange circles) correspond to double reflections. (c) CBED patterns measured at the positions marked as A, B, C and D in panel (a). The zone axes of the SAED and CBED patterns are [110] for both matrix and twins. (d) Dark-field image taken using the diffraction spots enclosed by the solid yellow circle in panel (b), i.e. Mathematical equation and the double reflection from the matrix/twin interface that is located between the diffraction spots Mathematical equation and Mathematical equation.
