Lattice strain relaxation in thin Mo films grown heteroepitaxially on MgO single crystals

Cejpek, P.; Motylenko, M.; Rafaja, D.

doi:10.1107/S1600576726000233

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

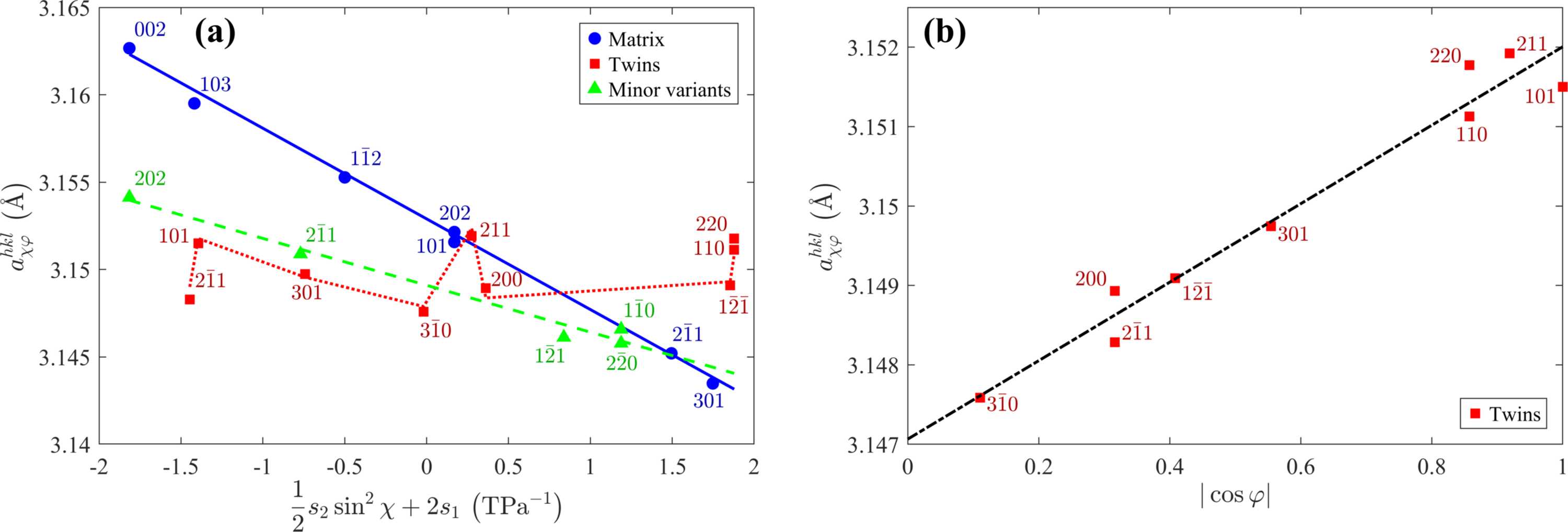

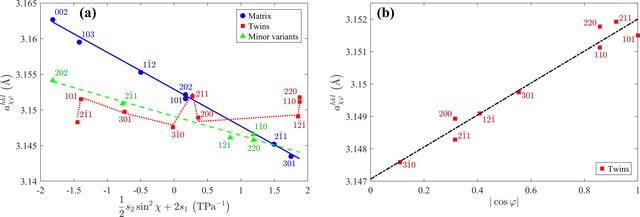

Figure 4
Lattice parameters of individual orientation variants of crystallites in the Mo film deposited on the (001)-oriented MgO substrate. Panel (a) shows the lattice parameters of all orientation variants as a function of $[{{1}\over{2}}s_{2}\sin^{2}\chi+2s_{1}]$ [cf. equation (7)]. Panel (b) illustrates the dependence of the lattice parameters of twins on $[|\!\cos\varphi|]$ (see text for more details). Measured lattice parameters are plotted by symbols and the respective fits by lines.
