Figure 6

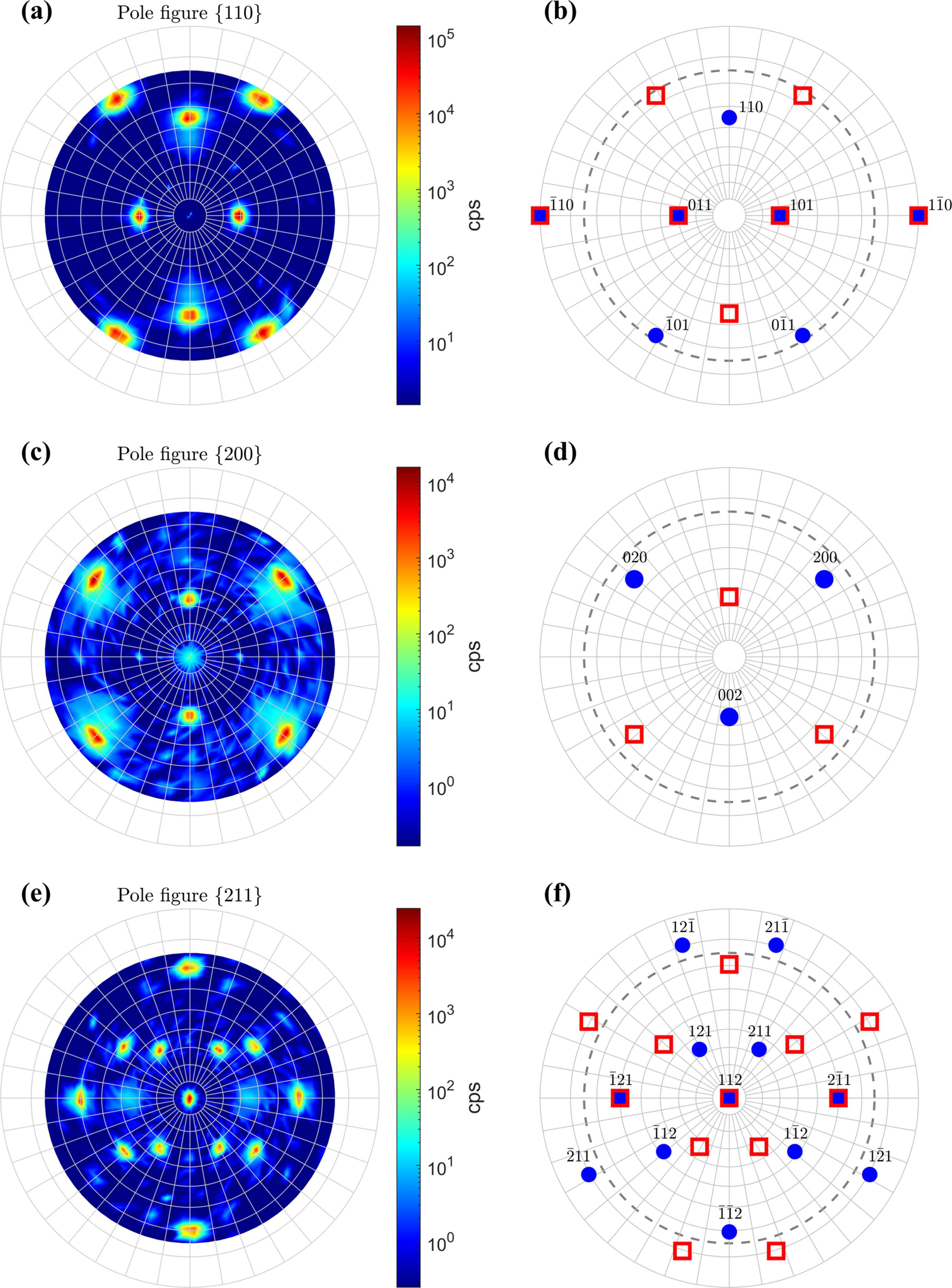

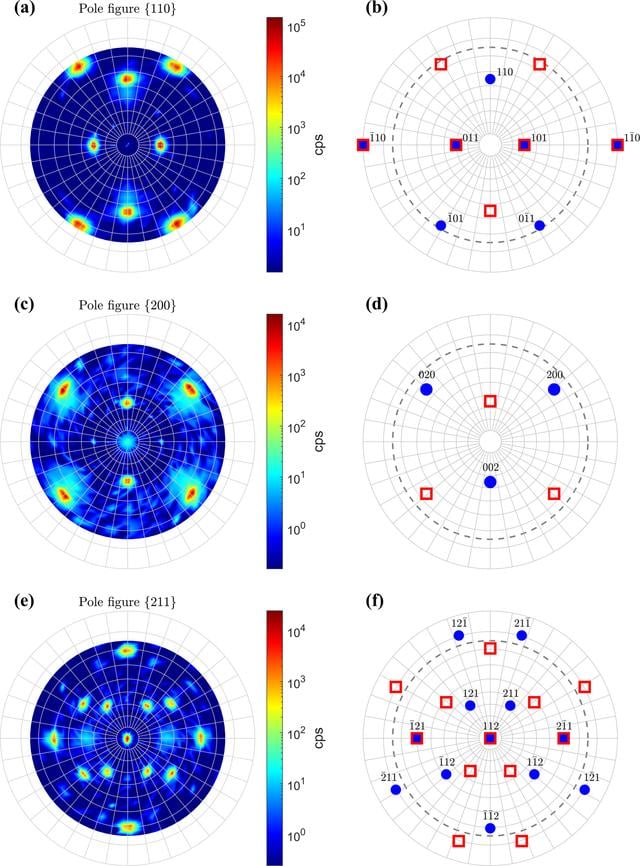

Pole figures of the Mo film deposited on the (011)-oriented MgO substrate. Left panels: measured pole figures {110}, {200} and {211} (from the top to the bottom). The diffracted intensities are shown in logarithmic scale. Right panels: corresponding pole figures simulated for the orientation relationships Mathematical equation (blue filled circles) and Mathematical equation (red open boxes). The dashed circles in the right panel indicate the limit of the sample inclination (Mathematical equation) (see left panel). The weak and diffuse intensity maxima in the measured pole figures having no counterparts in the simulation stem from the tails of the MgO reflections.
