Lattice strain relaxation in thin Mo films grown heteroepitaxially on MgO single crystals

Cejpek, P.; Motylenko, M.; Rafaja, D.

doi:10.1107/S1600576726000233

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 7

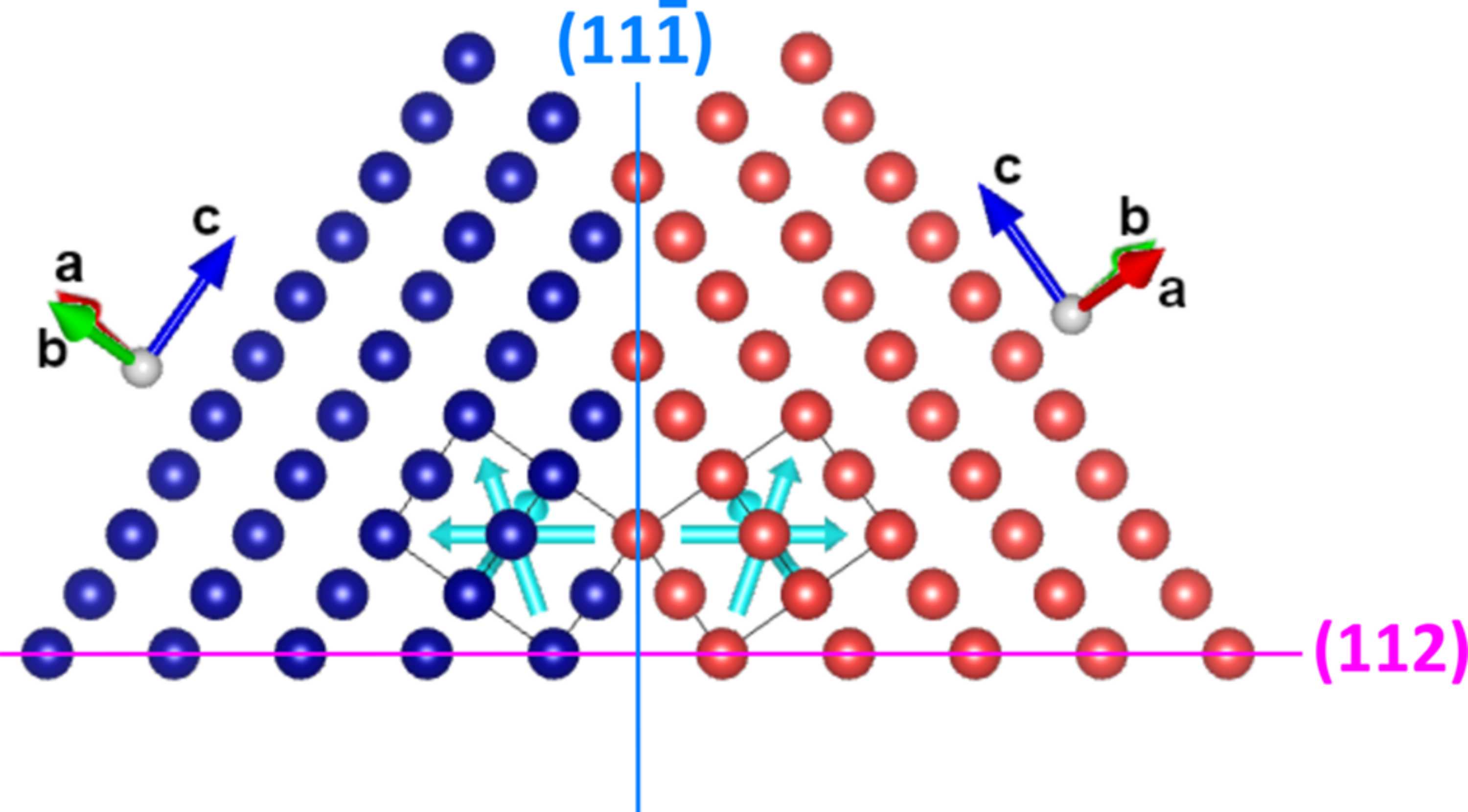

Atomistic model of the orientation variants present in the Mo film deposited on the (011)-oriented MgO substrate, depicted in the $[[1\bar{1}0]]$ projection. The blue and red atoms correspond to the respective orientation variant. The cyan arrows mark the Burgers vectors $[(a/2)\langle 111\rangle]$ . The model was drawn using VESTA (Momma & Izumi, 2011

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 1| February 2026| Pages 190-205

https://doi.org/10.1107/S1600576726000233
