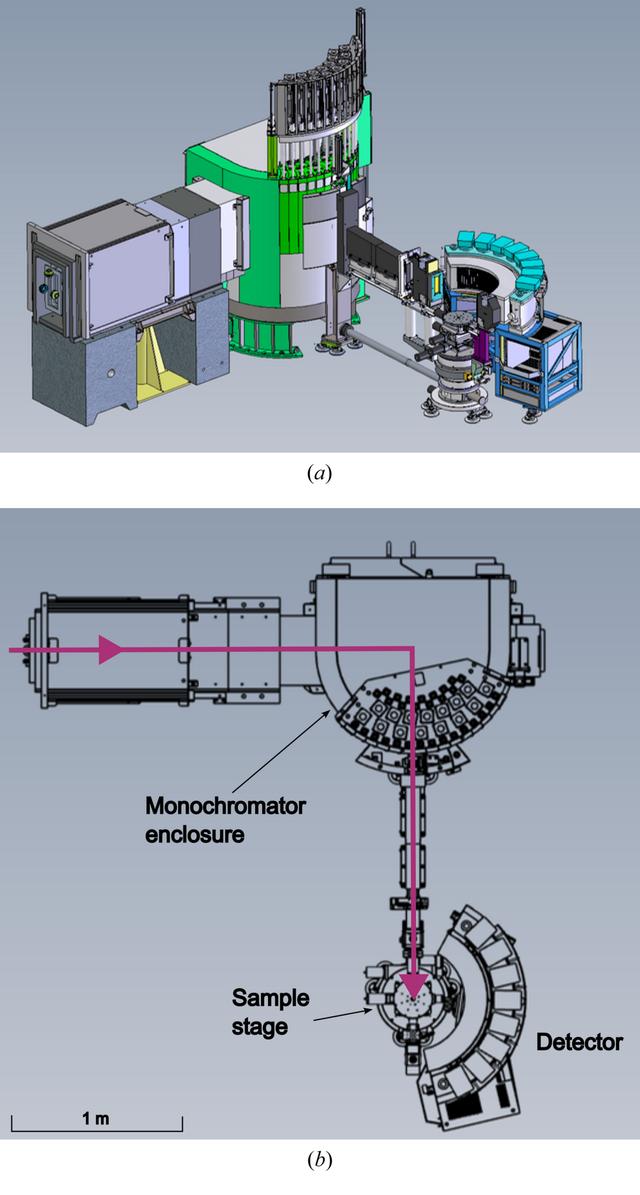

Figure 1
Schematics of the Wombat instrument. Both diagrams show the instrument configured with a take-off angle of 90° and a detector start angle of ∼14°, which is the most common configuration of these components. The upper panel shows the `walk-in' view, displaying the relative height of the components, while the bottom panel gives a birds' eye view of the instrument layout with the beam path marked in purple. The scale marker is approximate
