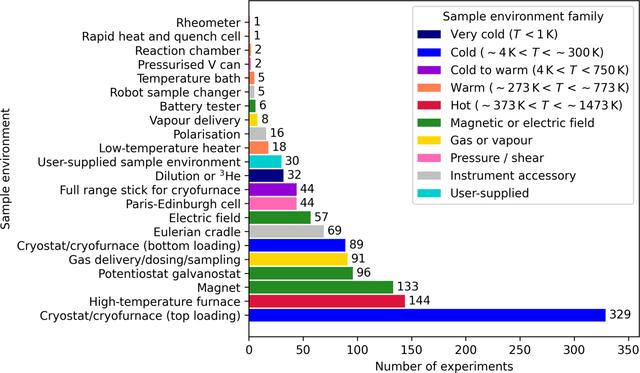

Figure 3
Bar chart illustrating the use of different pieces of sample environment equipment on Wombat during user experiments. Multiple pieces of sample environment equipment may be used during a single experiment, which is why the total sample environment equipment uses charted (1222) exceeds the number of experiments (805) listed in Section 6[link].
