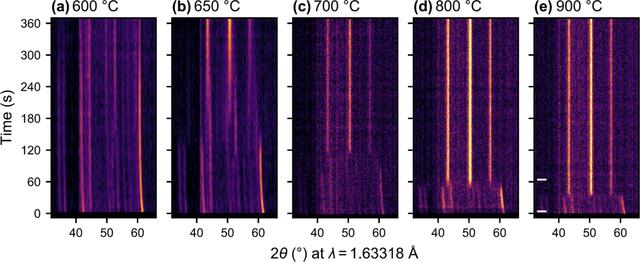

Figure 4
Neutron diffraction patterns collected in situ as reagents mixed for Na0.7WO3 are dropped into a preheated furnace, set to various temperatures. The colourmap limits are identical across (c–e) but are different from those in (a, b) due to the different acquisition conditions. These patterns are shown with the SiO2 background subtracted. Reprinted with permission from Tegg et al. (2021View full citation). Copyright 2021 American Chemical Society.
