Describing neutron spin echo data from undulating lipid vesicles: recent advances

Hoffmann, I.; Kelley, E.G.; Nagao, M.; Vlahovska, P.; Granek, R.

doi:10.1107/S1600576725011343

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

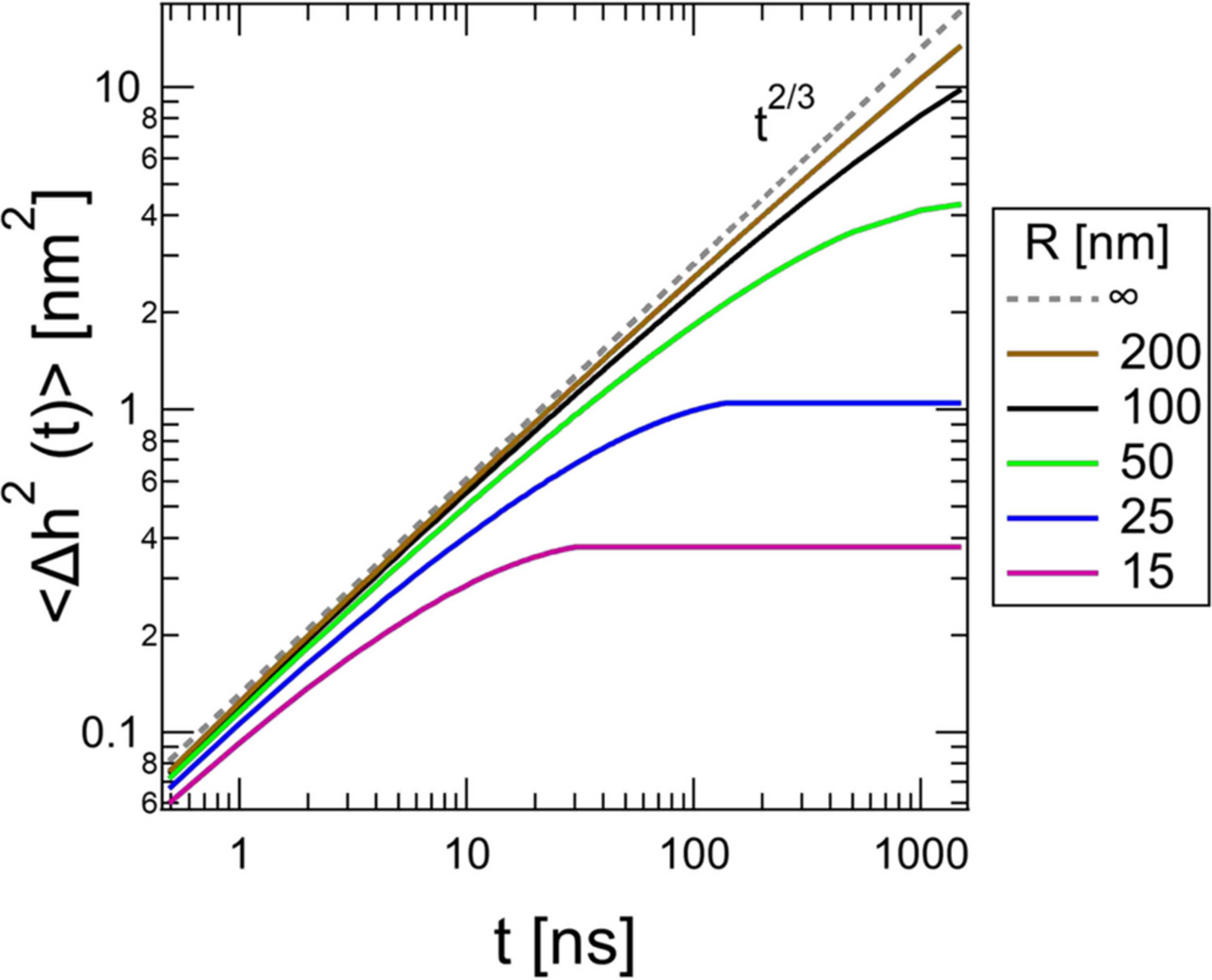

Figure 2
Calculated dimensioned mean squared displacement of the membrane undulations without the contribution from diffusion, $[\langle\Delta h^{2}(t)\rangle = ]$ $[R^{2}\langle\Delta u^{2}(t)\rangle]$ , for infinitely large vesicles ( $[R\rightarrow\infty]$ ) and for R values typical of extruded vesicles and assuming a membrane thickness of $[\delta = 3]$ nm and bending modulus $[\kappa_{\rm NSE} = 150]$ $[k_{\rm B}T]$ . In the infinite limit, the familiar t^2/3 scaling from the classical Zilman–Granek stretched exponential is recovered; however, the finite size of extruded vesicles leads to significant deviations from the commonly assumed t^2/3 scaling in the time window accessible on modern NSE spectrometers.

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 1| February 2026| Pages 152-162

https://doi.org/10.1107/S1600576725011343
