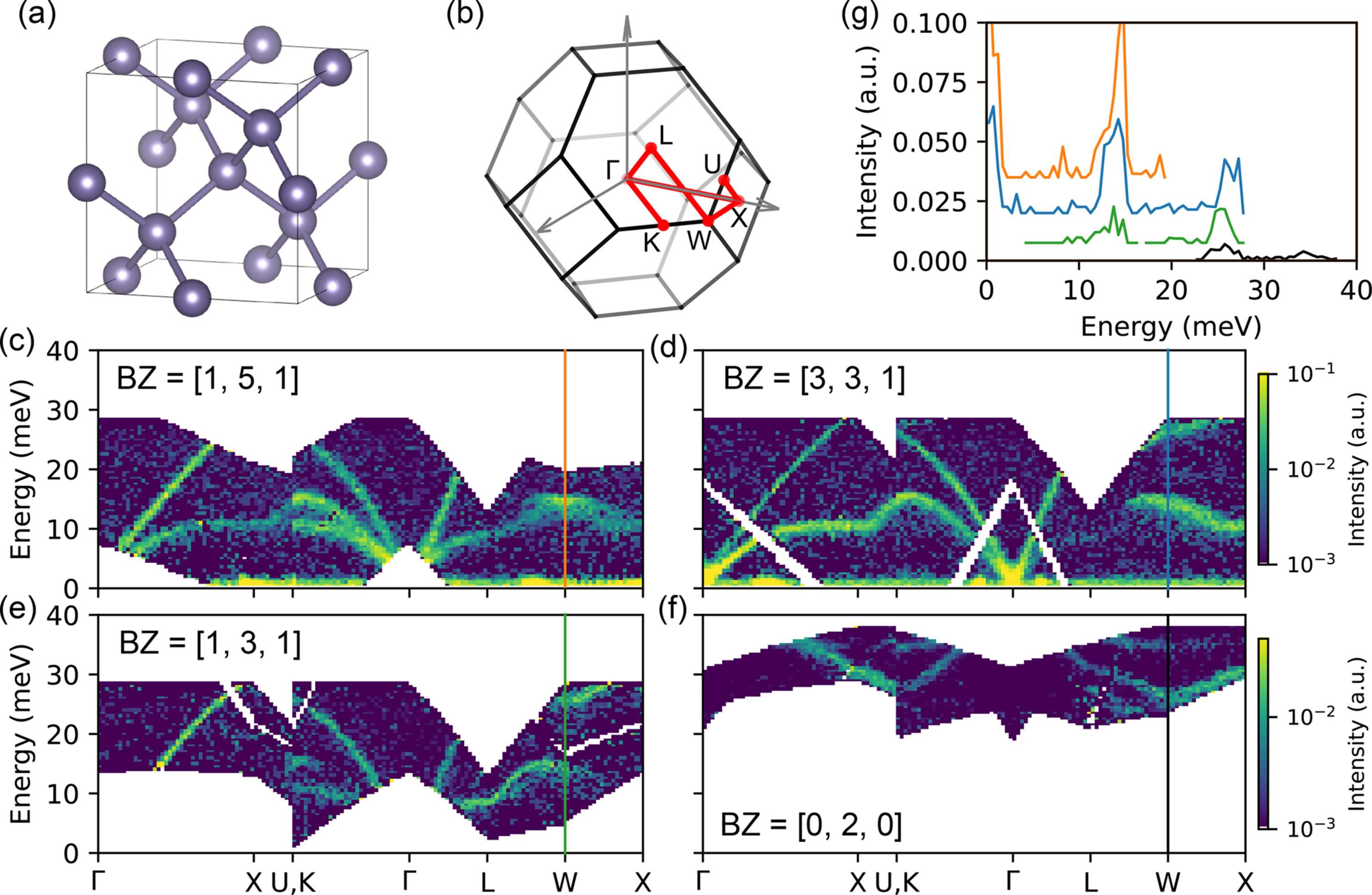

Figure 5
Auto-slice maker workflow applied to a single-crystal dataset for Ge measured with the ARCS spectrometer at the SNS. (a) Conventional unit cell and (b) BZ of Ge. Automated 2D inelastic slices and visualizations of S(Q, E) along the high-symmetry q path translated to BZs (c) [1, 5, 1], (d) [3, 3, 1], (e) [1, 3, 1], and (f) [0, 2, 0]. (g) Overplotted S(Q = W, E) spectra, where colors correspond to the vertical colored lines in (c)–(f). Note how the INS data quality and information content vary significantly and somewhat unpredictably throughout the full 4D volume. All spectra were processed with Qdim1,step = 0.025 r.l.u, E = [0, 0.5, 40] meV and Qdim2,int = Qdim3,int = 0.05 r.l.u.
