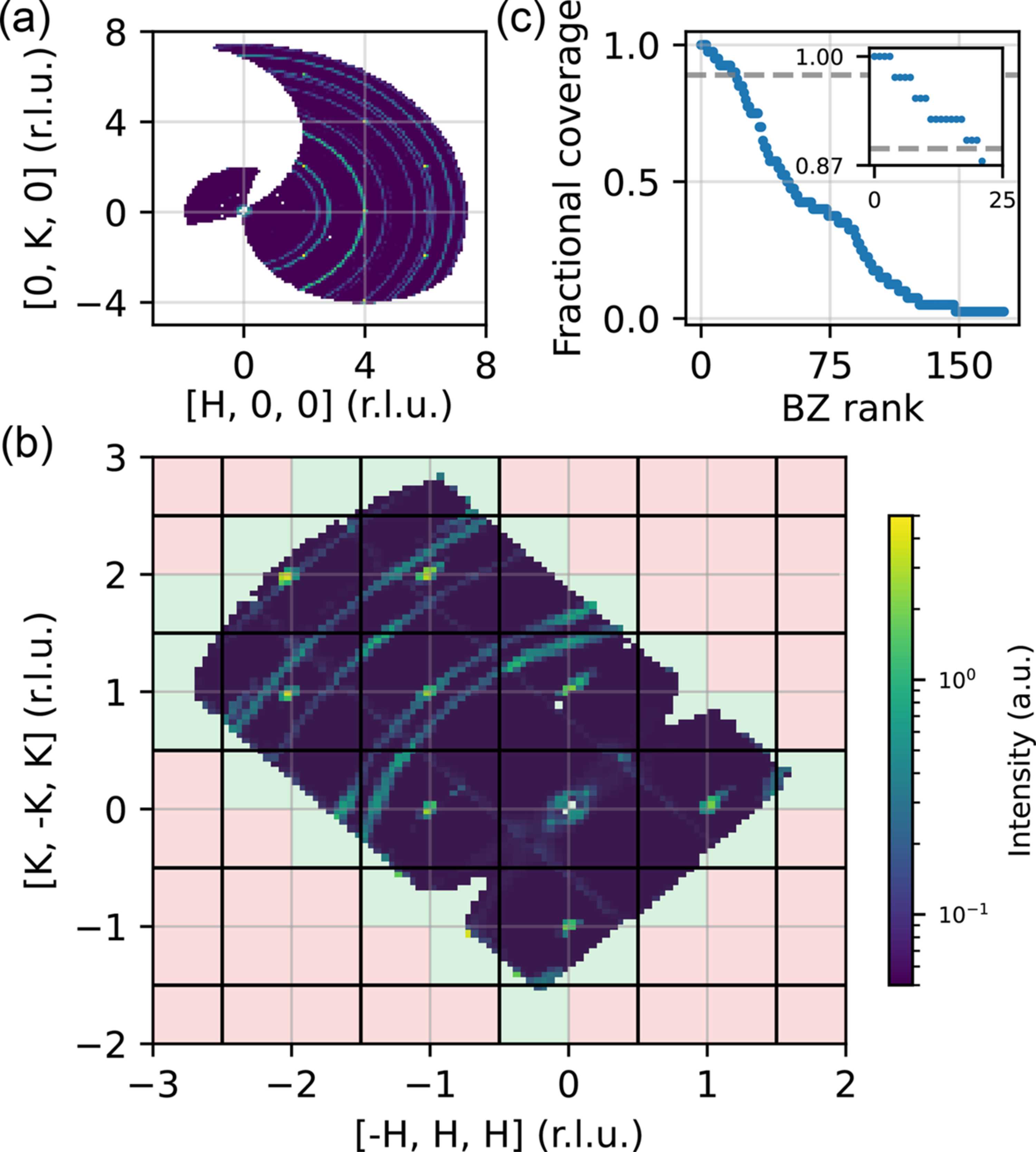

Figure 6
2D projection of the BZ coverage determination and prioritization process applied to a Ge single-crystal dataset measured with the ARCS spectrometer. (a) Elastic Q map in the original conventional cubic Q basis. (b) Elastic Q map in the primitive Q basis such that each integer HKL is a BZ center. Each BZ (black lines) is partitioned into Q octants (gray lines), each with five energy bins, and the bin-wise Q, E coverage is determined as indicated by the red or green color. (c) Fractional Q, E coverages for each BZ within the dataset, ranked for further processing. The gray dashed line indicates the coverage threshold below which BZs are excluded (0.89 in this example).
