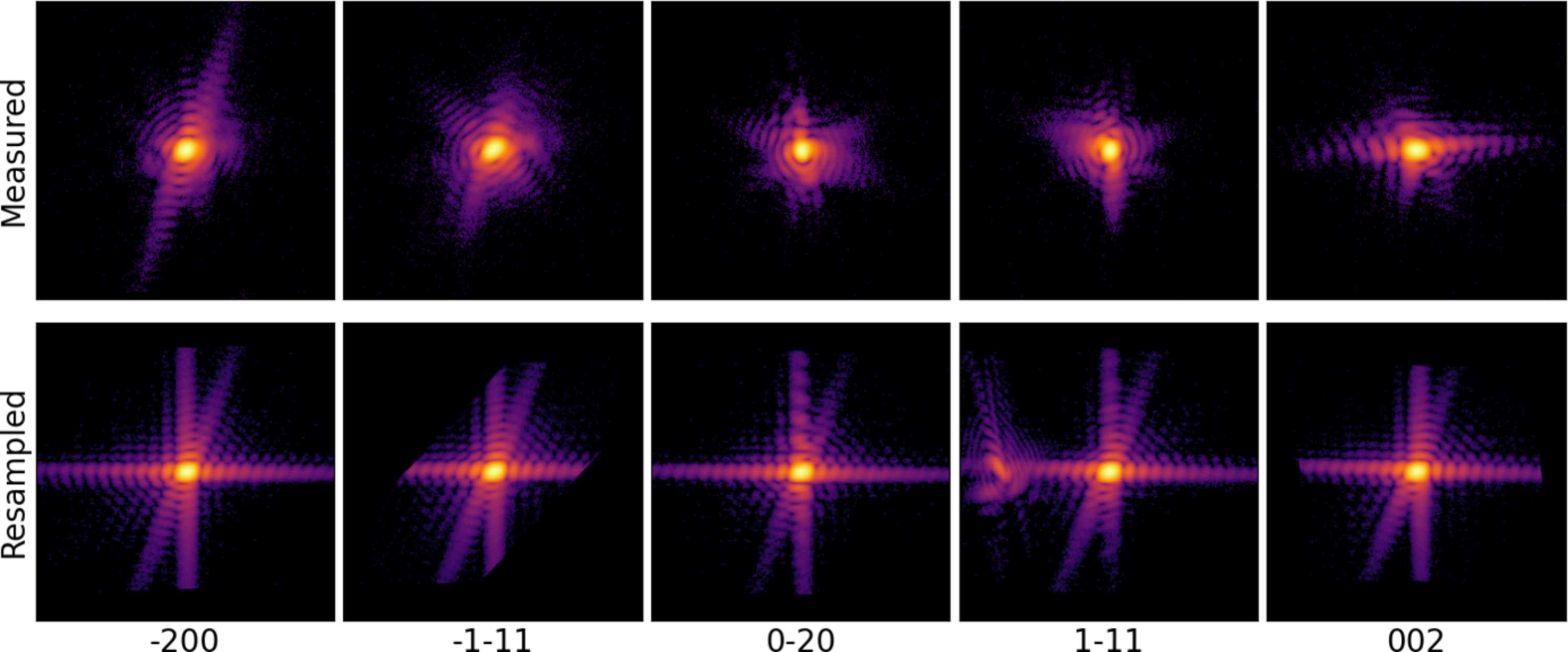

Figure 3
Central slices of each measured Bragg peak, (top) in the original rocking curve coordinate system and (bottom) resampled into the crystal coordinate system for phase retrieval. Images are colored on a logarithmic scale. An additional diffraction pattern was added to the Mathematical equation peak image to simulate the presence of an alien. Due to the placement of this alien, it does not appear in the central frame of the rocking curve, though some fringes are visible to the left of the main peak in the resampled image. The alien can be more easily seen in Fig. 6(b).
