Evolution of crystallographic texture and material anisotropy effects resulting from uniaxial deformation for high-strength steels with high manganese content

Zuern, M.; Dadkhah, M.; Nitschke-Pagel, T.; Gibmeier, J.

doi:10.1107/S1600576725010350

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

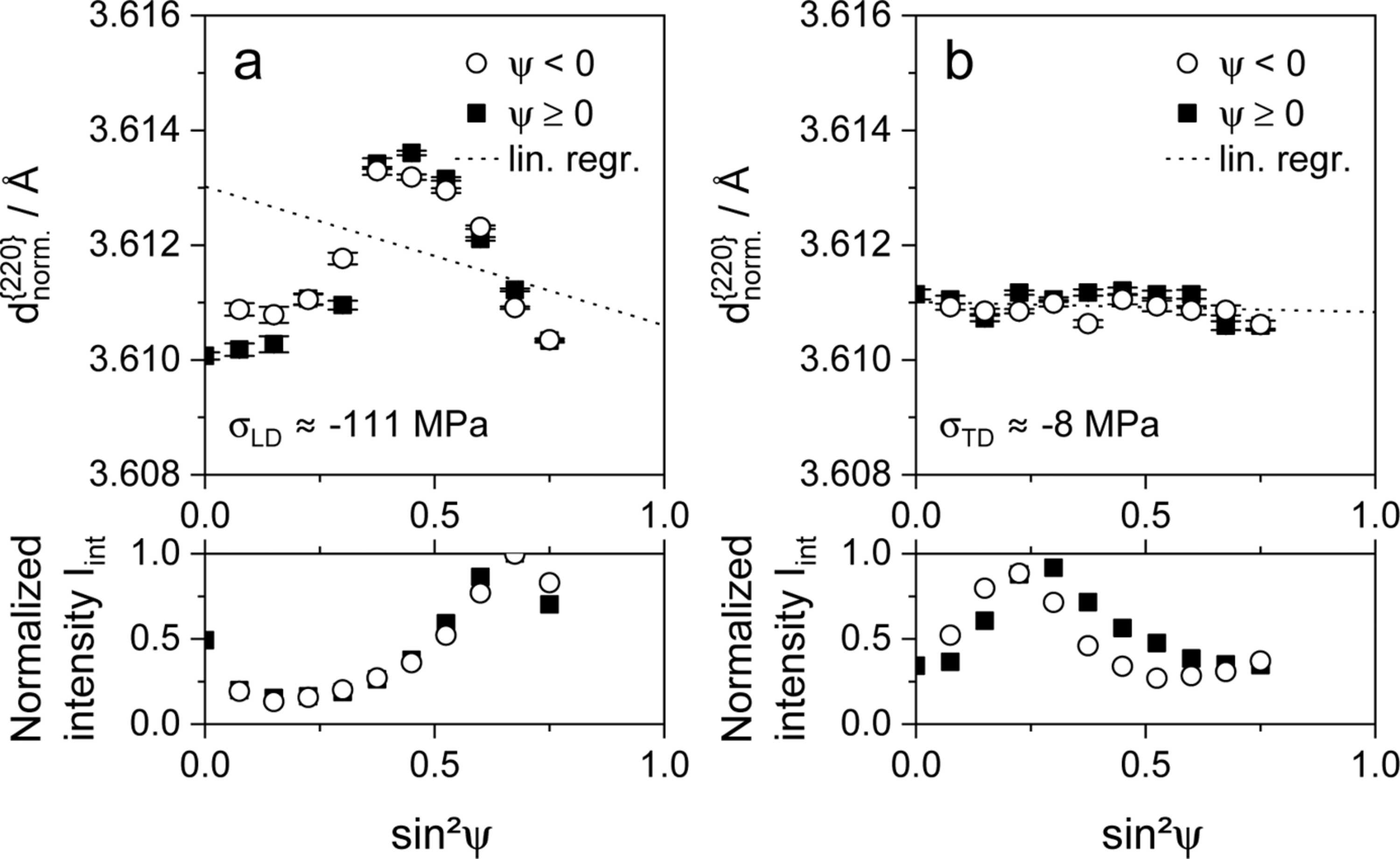

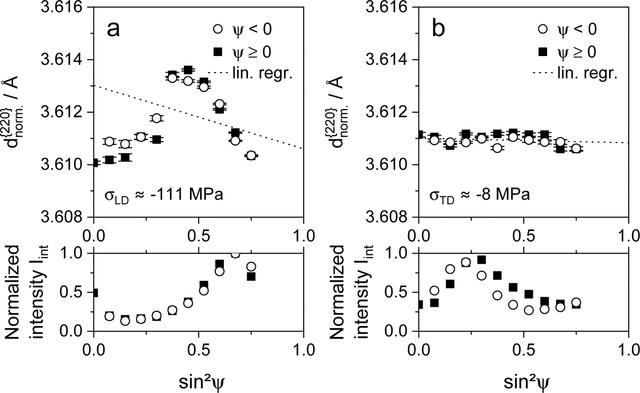

Figure 9
Distributions of lattice parameters $[d^{\{220\}}_{\rm norm.}]$ and normalized integral intensities I_int for the γ{220} X-ray interference line of TWIP steel X40MnCrAlV19-2.5-2, plotted versus $[\sin^{2}\psi]$ . The specimen was deformed to a total strain of about 45% in the rolling direction of the metal sheet. The analyses were performed after unloading (a) in the load direction and (b) in the transverse direction.

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 1| February 2026| Pages 163-178

https://doi.org/10.1107/S1600576725010350
