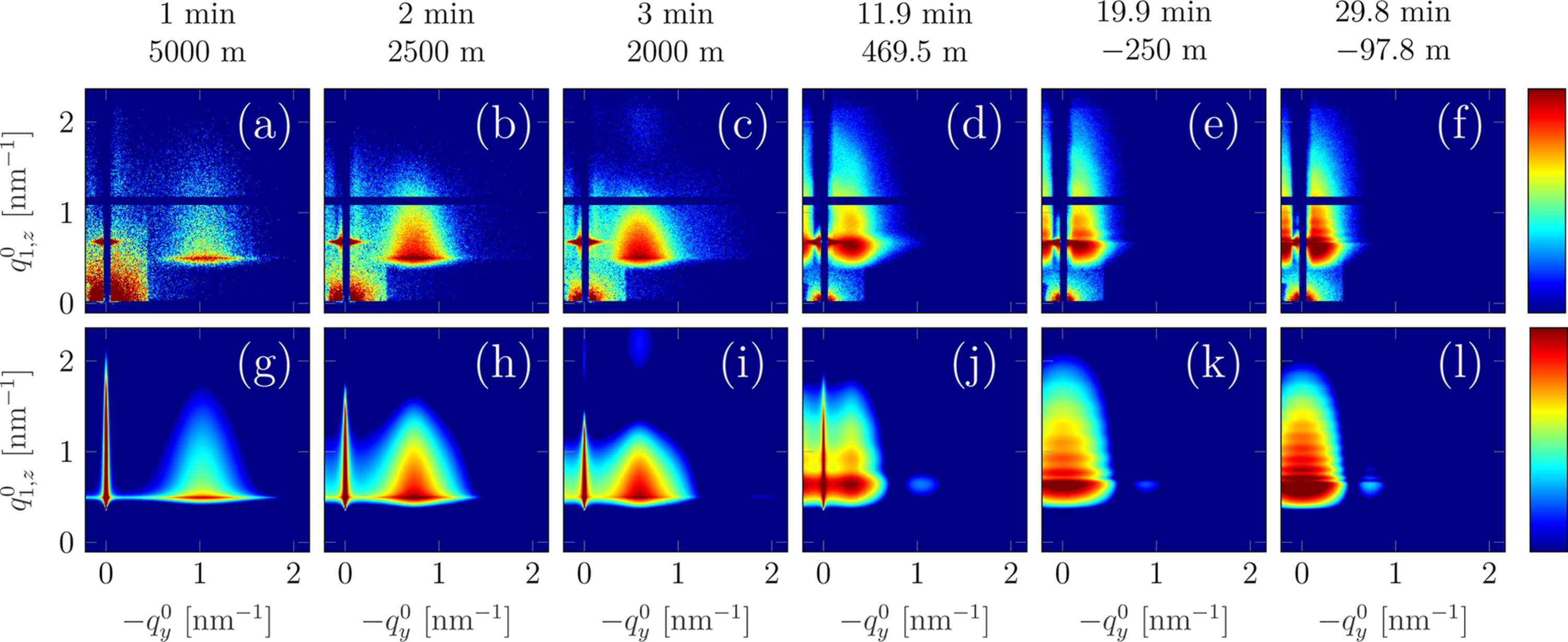

Figure 13
Comparison of the GISAXS data and simulated patterns for selected times during the film deposition. The upper plots (a–f) show the experimental pattern, and the simulation results are given in the second row (g–l). A good agreement can be observed in all cases. The values above the images indicate the deposition time and the corresponding substrate curvature. The intensity (colour) is plotted on a logarithmic scale.
