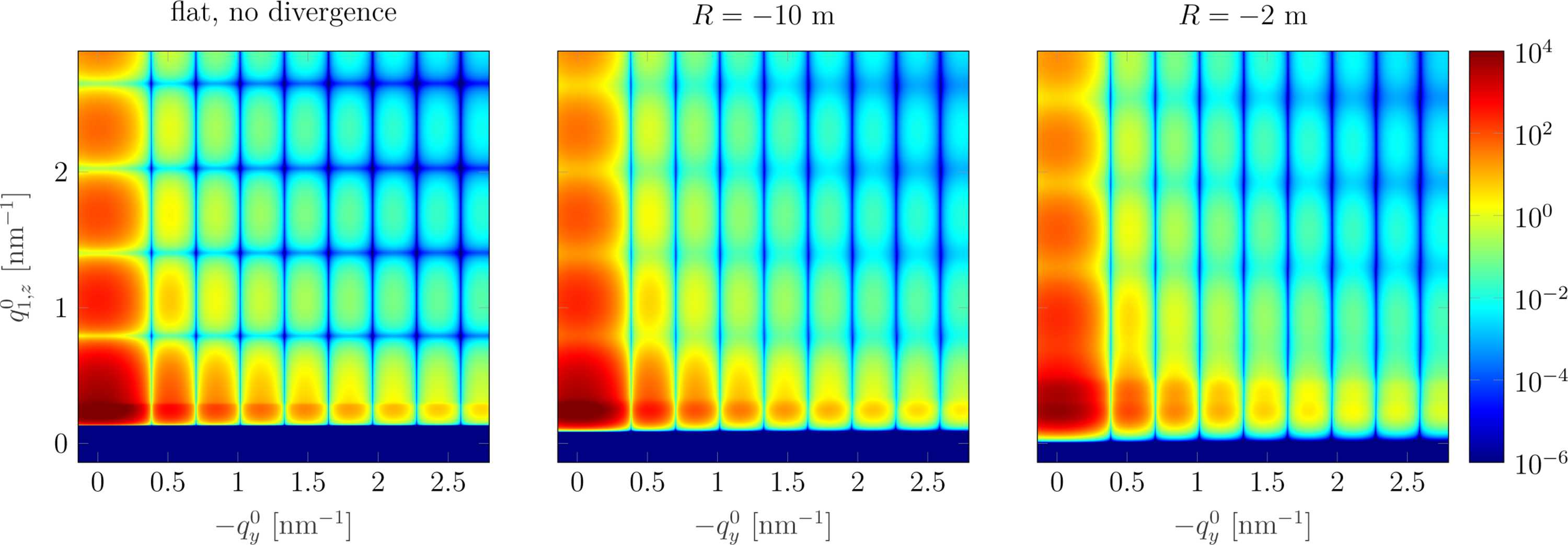

Figure 8
GISAXS patterns simulated for the curved convex samples for R = −10 m (centre) and R = −2 m (right). Divergence was taken into account. For comparison the pattern for a flat sample without divergence (ideal case) is shown on the left. The difference between the patterns is mostly a smearing in the vertical direction. Calculations were performed for d = 2 m.
