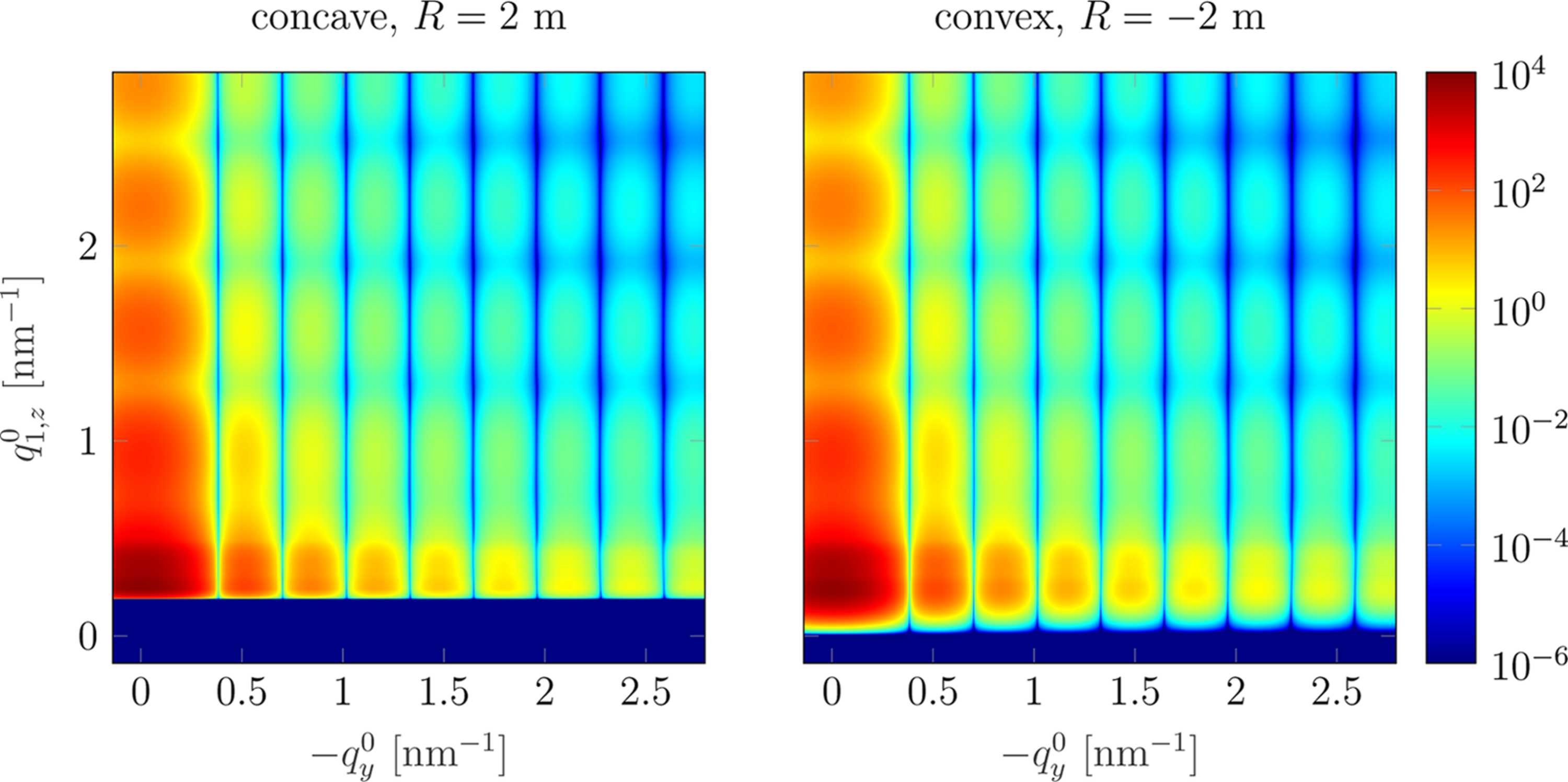

Figure 9
Comparison between the GISAXS patterns for the concave (left) and convex (right) samples, |R| = 2 m. The patterns differ mainly at small q1,z0, which is related to the shadowing of the scattered signal by the concave sample. Calculations were performed for d = 2 m.
