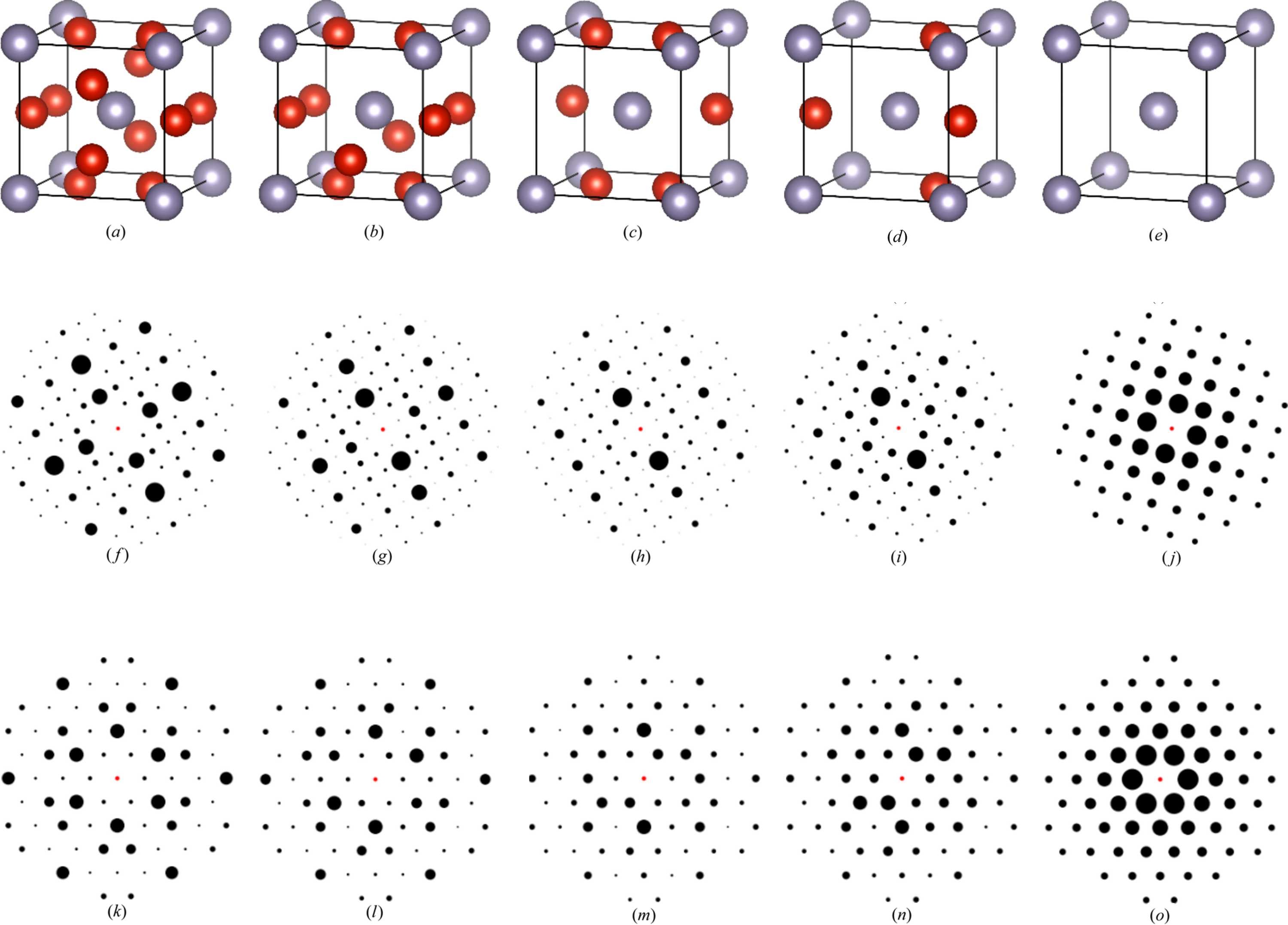

Figure 12
(a–e) The unit cell of the structure ICSD_ 106097 after applying defects. (f–j) 2D XRD patterns along the [100] zone axis under different defect percentages. (k–o) 2D XRD patterns along the [111] zone axis under different defect percentages. (a), (f), (k) 0% depletion; (b), (g), (l) 25% depletion; (c), (h), (m) 50% depletion; (d), (i), (n) 75% depletion; (e), (j), (o) 100% depletion. See Table 7[link] for further details.
