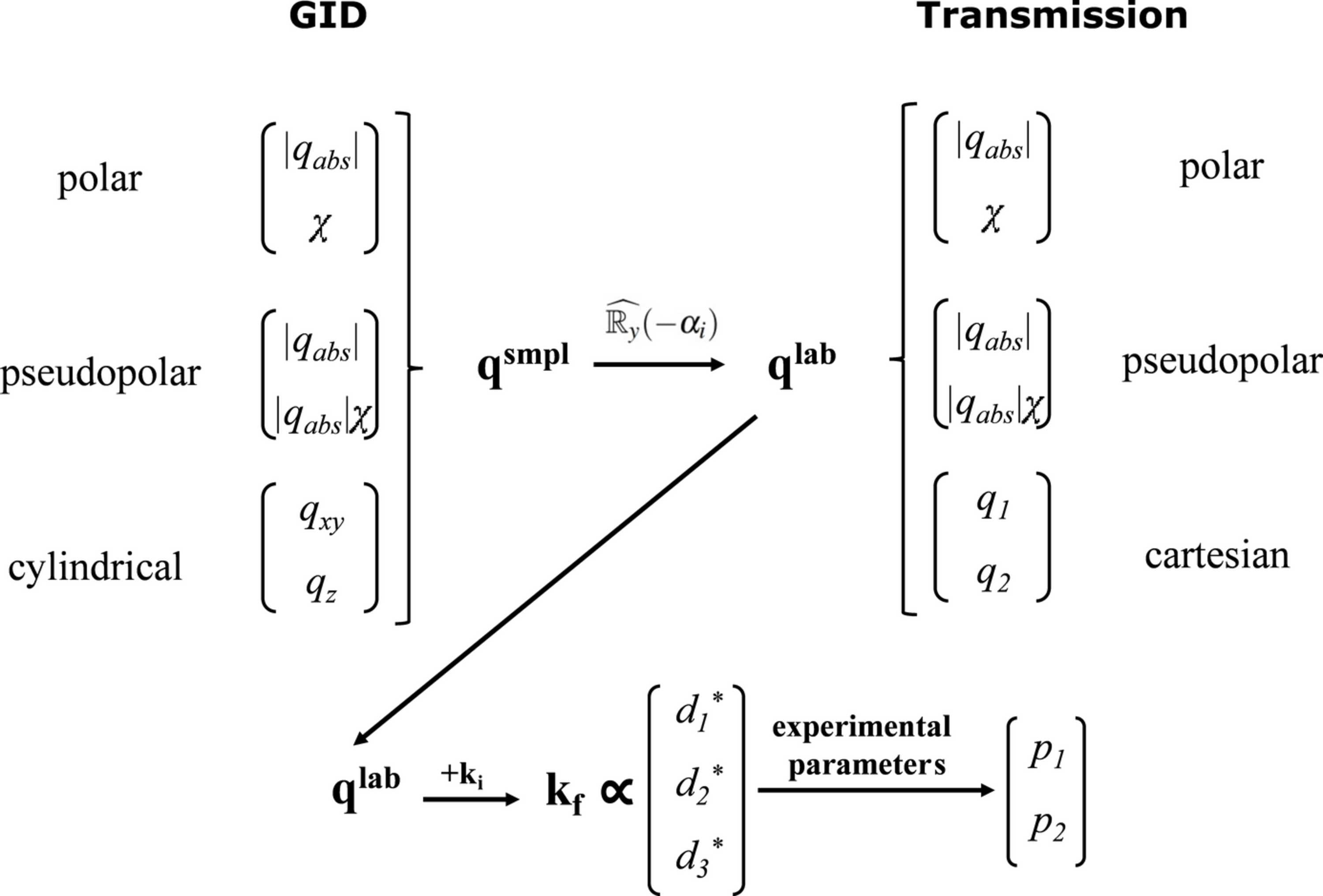

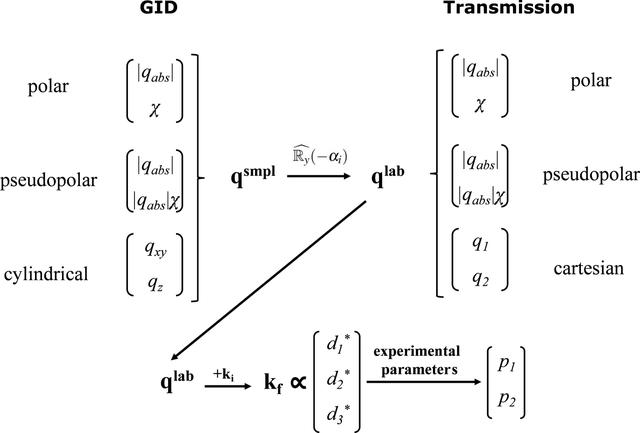

Figure 3
Schematic representation of coordinate map calculation from the given coordinate types and ranges. qsmpl and qlab are scattering vectors in the sample and laboratory coordinate systems, respectively, related to each other via a rotation matrix around the ylab axis. ki is the incident wavevector in the LCS, kf the scattered wavevector in the LCS, ( d1*, d2*, d3*) the real-space pixel positions in the LCS and (p1, p2) the pixel positions in the converted images.
