Figure 6

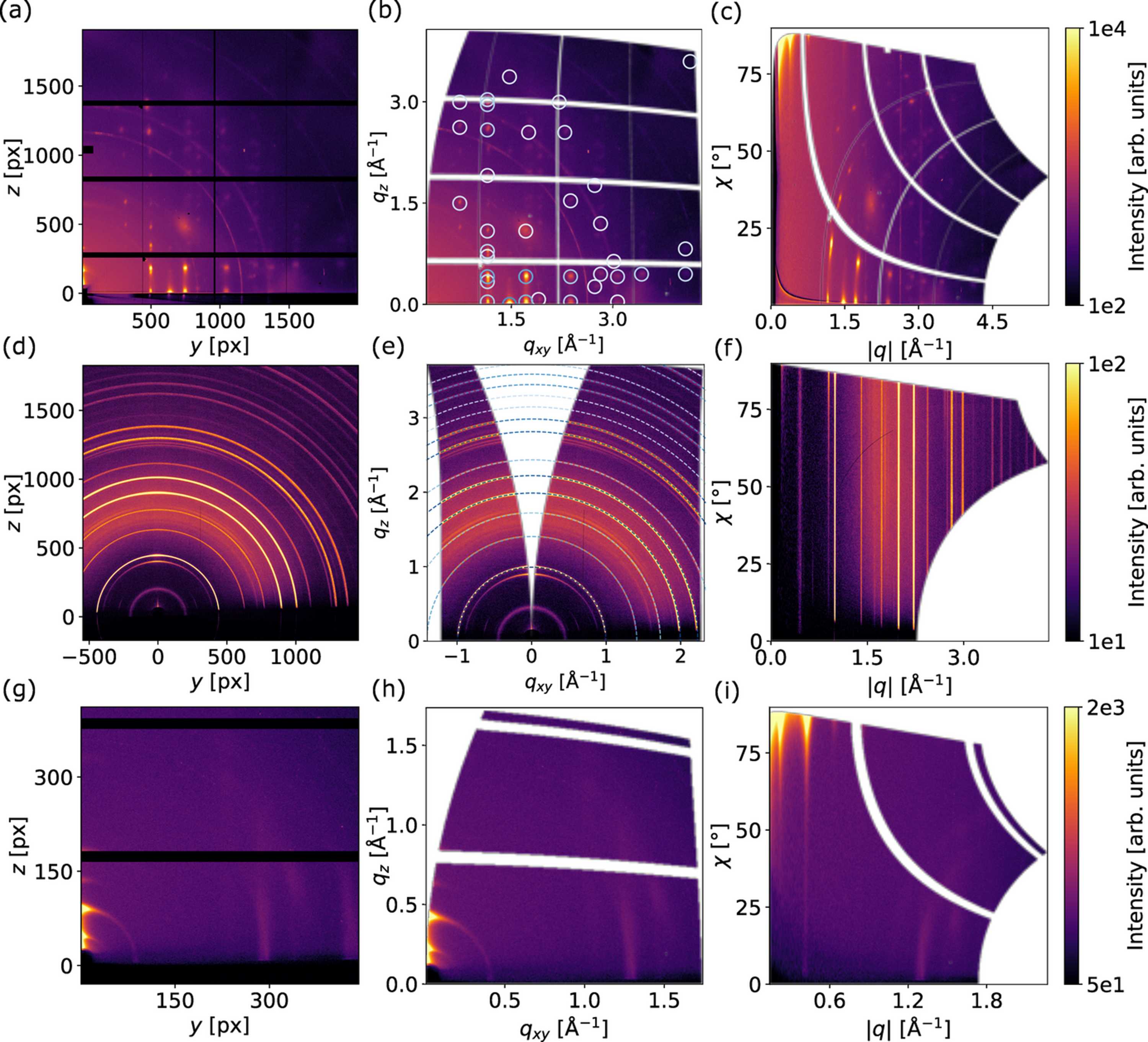

pygid package usage examples. (a)–(c) GIWAXS patterns of a DIP thin film measured on the ESRF ID10 beamline (EIGER2 X CdTe 4M detector). (d)–(f) GIWAXS patterns of MAPbI3 measured on the DESY P08 beamline (PerkinElmer flat-panel detector). (g)–(i) GIWAXS patterns of Pb nanoparticles measured using a laboratory scattering setup (Pilatus 300k detector). For each dataset, (a), (d), (g) raw scattering patterns, (b), (e), (h) converted images in cylindrical coordinates and (c), (f), (i) converted images in polar coordinates. The simulation of the scattering patterns was done using the pygidSIM package (blue rings). The color of the simulated data is proportional to the structure factor.
